Victron Energy Inverter RS 48/6000 230V Smart Solar with 450/85 MPPT - PIN486000450

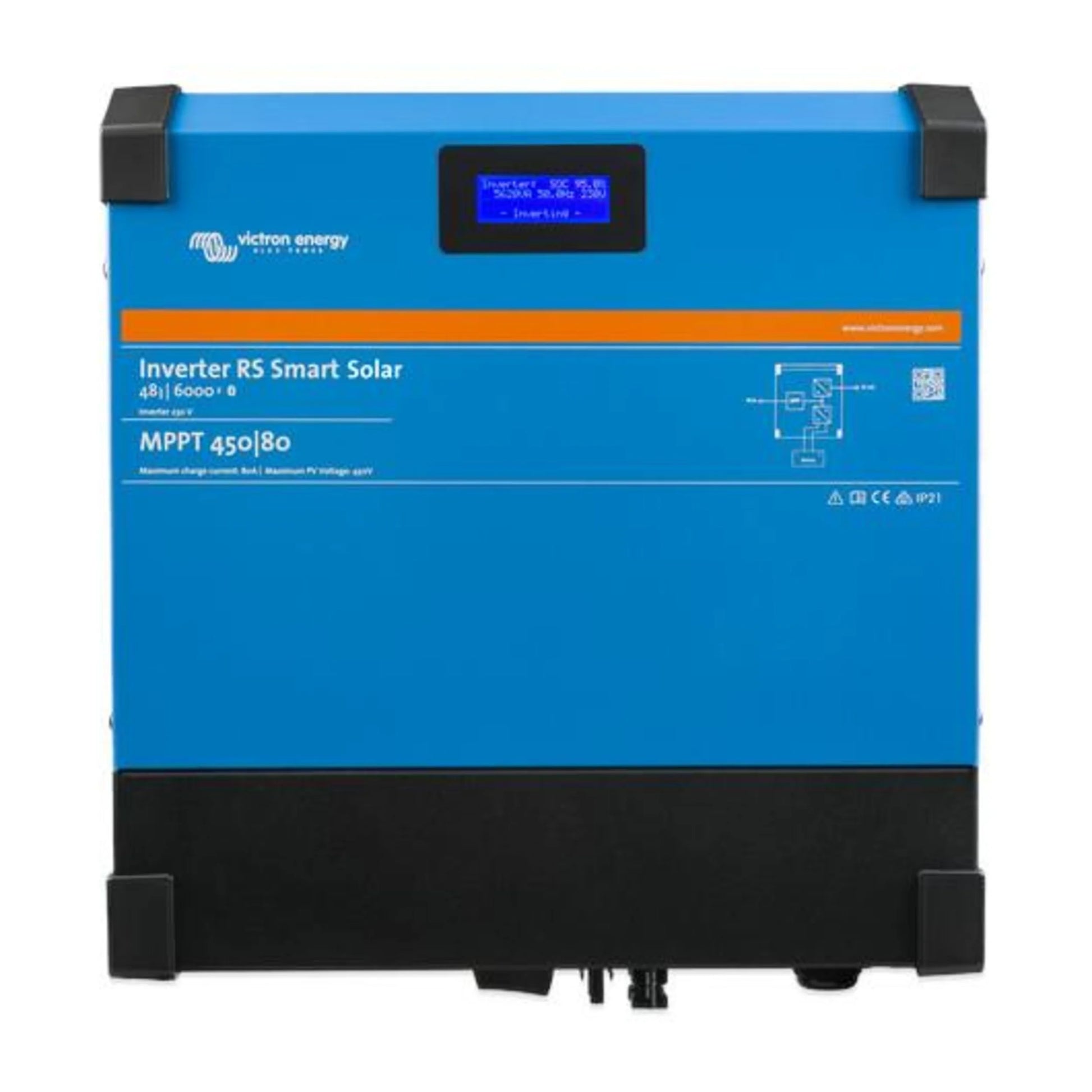

Inverter RS Smart Solar 48/6000

The Inverter RS Smart Solar 48/6000 is a high-performance off-grid solar inverter that combines a powerful 48VDC, 6kVA 230VAC inverter with a high-voltage 80-450VDC, 4kW MPPT solar charger. Designed with modern high-frequency technology, this lightweight inverter weighs only 11kg, ensuring excellent efficiency, low standby power, and exceptionally quiet operation. It is an ideal choice for off-grid solar applications where reliable AC power is required.

The inverter’s advanced capabilities include producing a pure sine wave to power high-demand appliances, a bi-directional DC-DC converter to charge batteries with excess solar energy or supply energy from the battery when needed, and an MPPT solar charge controller to optimise solar energy harvesting.

Key Features

• All-in-One Design: Combines an inverter, a bi-directional DC-DC converter, and a high-voltage MPPT solar charge controller.
• Wide MPPT Voltage Range: Operates from 80–450VDC with a PV startup voltage of 120VDC.
• Lightweight and Efficient: Weighs only 11kg, featuring high-frequency technology for superior efficiency and low standby power.
• Display and Bluetooth: Monitor battery, inverter, and solar charge parameters on the built-in display or via the VictronConnect app on your smartphone or Bluetooth-enabled device.
• VE.Can and VE.Direct Ports: Seamless connection to GX devices for system monitoring, data logging, and remote firmware updates.
• Built-in PV Isolator: Safely isolate parallel PV strings connected via MC4 plugs with the integrated isolator switch.
• Programmable I/O Connections: Includes a programmable relay, temperature sensor, voltage sensor, and remote input for Victron smallBMS configuration.

Additional Benefits

• Off-Grid Applications: Ideal for remote locations where AC power is required.
• Quiet Operation: Operates silently, making it suitable for both residential and commercial settings.
• Compact and Reliable: Durable design for long-term off-grid solar power solutions.

Technical Highlights

• AC Output: 230VAC, 6kVA
• MPPT Voltage Range: 80–450VDC
• Startup Voltage: 120VDC
• Weight: 11kg
• Communication Ports: VE.Can and VE.Direct

You can download the datasheet for the Victron Energy RS Smart Solar Inverter range here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
