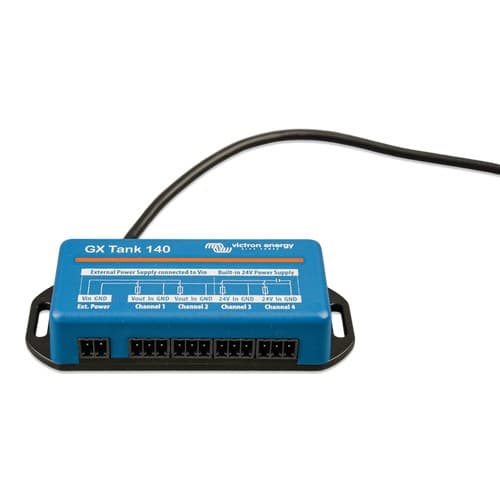

GX Tank 140

The GX Tank 140 is a versatile accessory designed to take readings from up to four tank level sensors. It integrates seamlessly with the Victron GX range of system monitoring products, with the Cerbo GX being the most commonly used model. This device ensures accurate monitoring of tank levels locally within the system and remotely via the VRM Portal.

Key Features:

• Supports up to four tank level sensors.
• Compatible with current senders (4 to 20 mA) and voltage senders (0 to 10 V).
• Simple connection to the GX device via USB, which also powers the GX Tank 140 – no additional power wires needed.
• Two inputs provide 24 V power to tank senders, while the other two require an external power supply, with integrated fused outputs for easy setup.
• Customisable upper and lower limits for compatibility with partial-scale senders (e.g., 0 to 5 V).
• Configurable reading damping from 1 to 60 seconds for stable measurements.
• Fault detection with alarms for out-of-range values, ensuring reliable performance.

Marine Applications:

The GX Tank 140 is NMEA 2000 compatible, enabling the transmission of tank level data to other displays such as Multi-Functional Displays (MFDs) in marine environments.

You can download the datasheet for the GX Tank 140 here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
