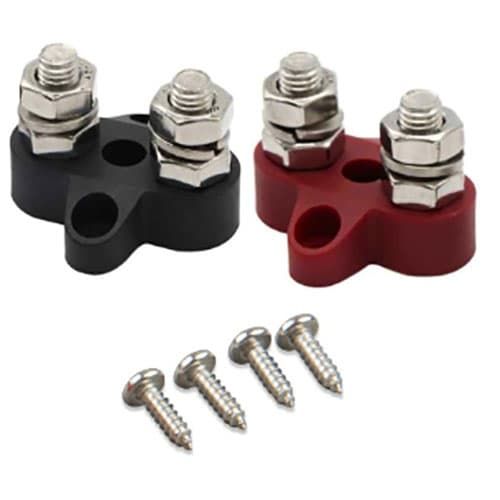

Victron Energy Dual Terminal Stud M8-linked set (1 red/1 black)
Victron Energy Dual Terminal Stud M8-linked set (1 red/1 black)
Couldn't load pickup availability
SKU:VBB413020010
Victron Dual Power Distribution Post – Efficient Power Distribution and Centralised Grounding
The Victron Dual Power Distribution Post is a robust and versatile solution for connecting electrical power runs, distributing power to separate locations, and condensing ground leads into a centralised location. Designed for reliability and durability, it is rated up to 150A and can handle up to 70VDC, making it suitable for a wide range of power systems in marine, automotive, and industrial applications.
Key Features of the Victron Dual Power Distribution Post
High Current and Voltage Rating
The distribution post is rated to handle up to 150A and 70VDC, providing reliable performance for demanding electrical systems.
Dual Terminal Stud Design
The dual M8 (5/16 inch) terminal studs allow for efficient connection and distribution of power runs, ensuring clean and organised wiring.
Durable Construction
Built with high-quality materials, the post features stainless steel terminals and hex nuts for corrosion resistance, a tin-plated copper busbar strip for excellent conductivity, and a base made of glass fibre-reinforced nylon for long-lasting durability.
Compact and Easy to Install
With a compact design and recommended torque specifications (10 N-m/90 lbf-inch), the power distribution post is simple to install and integrates seamlessly into your power system.
Technical Specifications
| Feature | Specification |
|---|---|
| Max. Current | 150A |
| Max. Voltage | 70VDC |
| Terminal Diameter | M8 (5/16 inch) |
| Terminal Height | 17mm (0.67 inch) |
| Terminal Material | Stainless Steel |
| Hex Nut Material | Stainless Steel |
| Recommended Torque | 10 N-m (90 lbf-inch) |
| Busbar Material | Tin-Plated Copper (1.0 x 13mm) |
| Base Material | Glass Fibre Reinforced Nylon |
Applications
The Victron Dual Power Distribution Post is ideal for:
- Marine electrical systems
- Automotive and RV energy setups
- Industrial power systems
- Off-grid and hybrid energy solutions
Why Choose the Victron Dual Power Distribution Post?
- Rated for high current (150A) and voltage (70VDC)
- Dual terminal stud design for clean and organised power distribution
- Corrosion-resistant stainless steel components
- Durable construction with glass fibre-reinforced nylon base
- Easy to install with clear torque specifications
