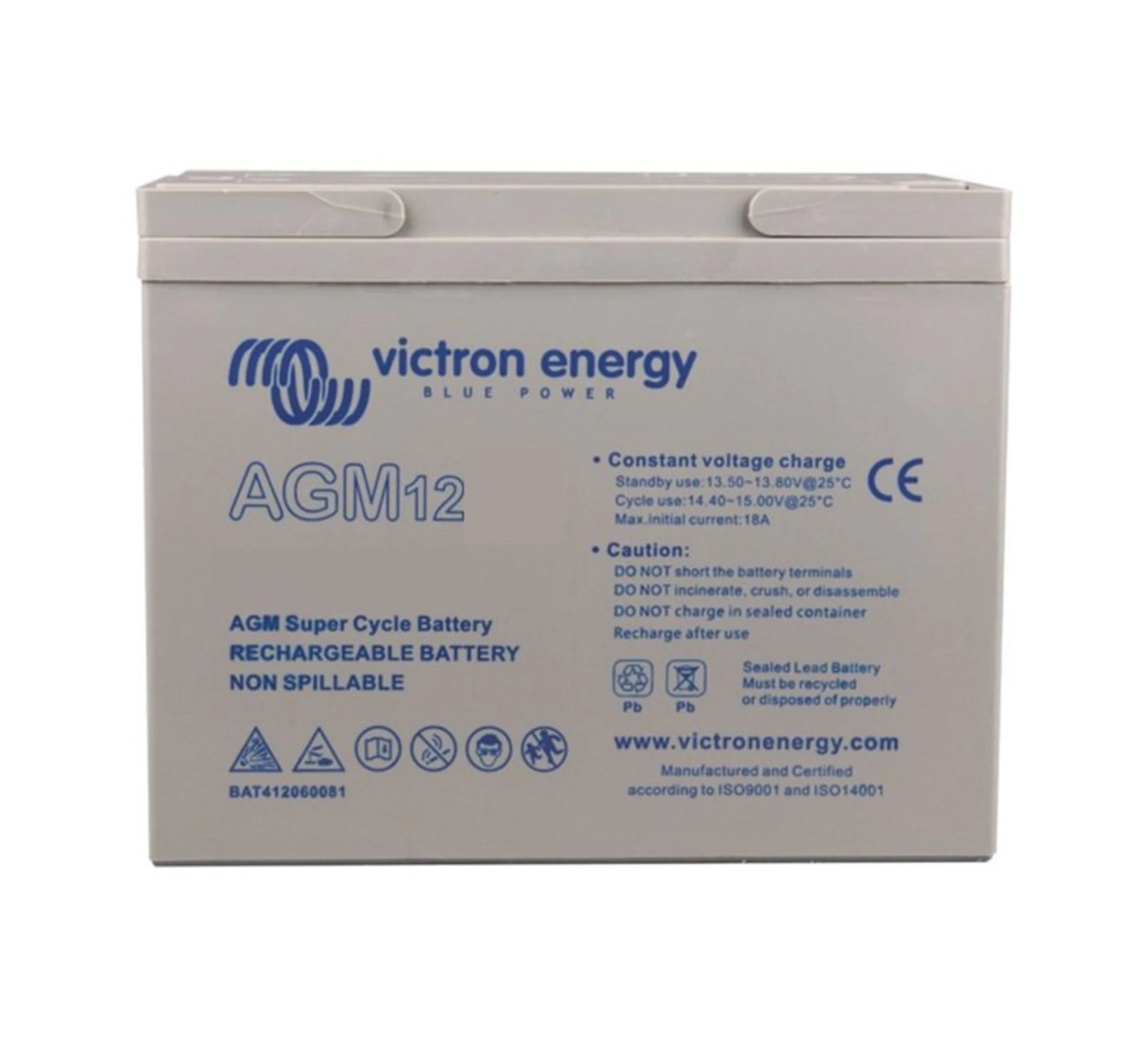

Victron Energy AGM Super Cycle Batteries

The AGM Super Cycle batteries represent an innovative advancement in battery electrochemistry. Designed for exceptional deep discharge performance, these batteries feature improved positive plate durability and reduced sulfation, making them ideal for demanding applications requiring frequent or occasional 100% Depth of Discharge (DoD).

Key Features:

• Exceptional 100% Depth of Discharge (DoD) Performance: Withstands at least 300 cycles at 100% DoD.
• Ideal for Deep Discharge Applications: Recommended for applications with occasional 100% DoD or frequent discharges of 60-80% DoD.
• Smaller and Lighter Design: Compared to standard deep cycle AGM batteries.
• Low Internal Resistance: Enhances efficiency and charging performance.
• Long Cycle Life:
  • ≥ 300 cycles @ 100% DoD
  • ≥ 700 cycles @ 60% DoD
  • ≥ 1000 cycles @ 40% DoD
• Temperature Compensation: Charge voltage should be adjusted based on temperature variations for optimal performance.

Recommended Charge Voltage:

Available Models & Specifications:

Temperature Compensation for Charging Voltage:

The charge voltage should be adjusted based on temperature changes. Victron recommends a temperature compensation of -4mV per cell (-24mV per °C for a 12V battery) to maintain optimal performance.

You can download the datasheet for Victron Energy AGM Super Cycle Batteries here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
