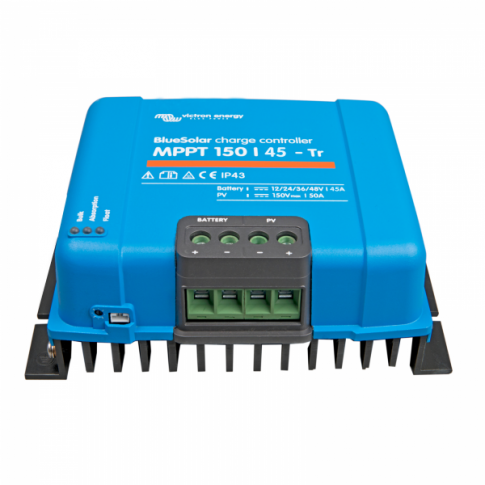

Victron BlueSolar MPPT 150/45 45A solar charge controller for solar panels up to 650W (12V) / 1300W (24V) / 1950W (36V) / 2600W (48V) up to 150V

Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation and auto 12 / 24 / 36 / 48V selection*
- 2 pairs of terminals (solar panel, battery) for wires up to 35mm2
- Max solar panel voltage: 150V
- Max solar panel power: 600W (12V) / 1300W (24V) / 1950W (36V) / 2600W (48V)
- Temperature sensor for automatic compensation (-16mV / -32mV / -48mV / -64mV / °C)
- Comprehensive electronic protection features
- Communication port: RS232 / TTL for VE Direct accessories
- Self-consumption: <35mA (12V) / <20mA (48V)
- Working temperature: -30°C to +60°C
- IEC/EN certified
- Enclosure: IP43 (electronic components) / IP22 (connection area)
- Pollution Degree rating: PD3
- Dimensions: 185 x 250 x 95 mm
- Mounting dimensions: 225 x 81 mm
- Weight: 3kg
- 4 x mounting holes (8mm diameter) for ease of installation

*36V selection available when using MPPT Control panel or VictronConnect App

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
