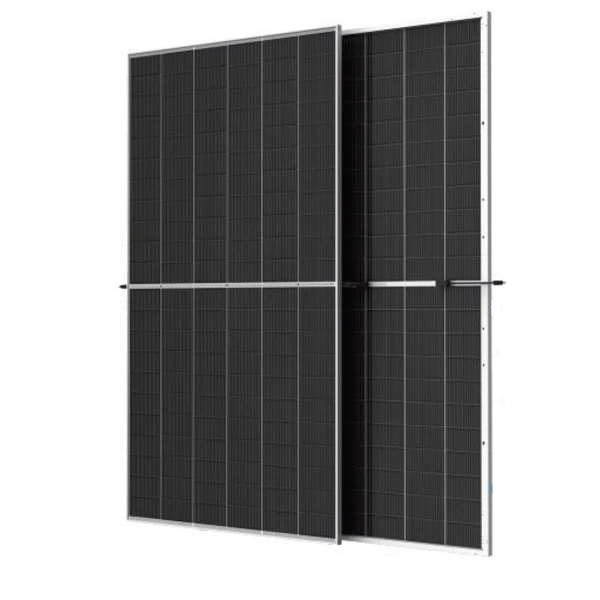

Trinasolar 720W Vertex S+ Dual Glass N-type i-TOPCon Solar Module - Silver Frame Transparent BiFacial
Trinasolar 720W Vertex S+ Dual Glass N-type i-TOPCon Solar Module - Silver Frame Transparent BiFacial
Couldn't load pickup availability
SKU:TSM-720NEG21C.20
The Trinasolar 720W Vertex N N-Type Bifacial Dual Glass Solar Panel (TSM-720NEG21C.20) is a high-output commercial and utility-scale solar module combining 720W power, 23.2% efficiency and advanced N-Type i-TOPCon technology. Its bifacial dual-glass construction can generate power from both sides of the panel, helping maximise energy yield in suitable installations.
Designed for large rooftop and ground-mounted solar systems, the Vertex N combines high power density, excellent temperature performance and low long-term degradation with a 30-year power guarantee.
Key Features
- 720W rated output
- 23.2% module efficiency
- N-Type i-TOPCon monocrystalline technology
- Bifacial dual-glass construction
- Up to 80% ±5% bifaciality
- Low -0.29%/°C temperature coefficient
- 1,500V DC maximum system voltage
- IP68 junction box
- 12-year product warranty
- 30-year power guarantee
High-Power N-Type Solar Technology
With 720W output from a single module, the Vertex N is designed to reduce panel count while delivering substantial installed capacity. N-Type i-TOPCon cells provide high conversion efficiency, strong low-light performance and excellent resistance to long-term degradation.
Bifacial Dual-Glass Design
The module generates electricity from both its front and rear surfaces, allowing reflected light to contribute additional energy in suitable ground-mounted, elevated or reflective installations. Dual-glass construction also provides excellent protection for the cells in demanding commercial and utility-scale environments.
Electrical Specifications
| Specification | Value |
|---|---|
| Model | TSM-720NEG21C.20 |
| Rated Power | 720W |
| Module Efficiency | 23.2% |
| Maximum Power Voltage (Vmp) | 41.3V |
| Maximum Power Current (Imp) | 17.44A |
| Open Circuit Voltage (Voc) | 49.4V |
| Short Circuit Current (Isc) | 18.49A |
| Maximum System Voltage | 1,500V DC |
| Maximum Series Fuse | 35A |
| Power Bifaciality | 80% ±5% |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Technology | N-Type i-TOPCon Monocrystalline |
| Cells | 132 |
| Construction | Bifacial Dual Glass |
| Dimensions | 2384 × 1303 × 33mm |
| Weight | 38.3kg |
| Front Glass | 2.0mm Heat-Strengthened Glass with AR Coating |
| Rear Glass | 2.0mm Heat-Strengthened Glass |
| Frame | Anodised Aluminium Alloy |
| Junction Box | IP68 |
| Cable | 4mm² |
Temperature Performance
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
30-Year Performance Guarantee
The Vertex N is engineered for dependable long-term generation, with maximum first-year degradation of 1% followed by 0.4% annual degradation, providing guaranteed output of 87.4% after 30 years.
| Warranty | Coverage |
|---|---|
| Product Warranty | 12 Years |
| Power Guarantee | 30 Years |
| Guaranteed Power at Year 30 | 87.4% |
Ideal For
- Commercial rooftop solar installations
- Utility-scale solar farms
- Ground-mounted solar arrays
- Agricultural and industrial solar systems
- Large grid-connected and off-grid solar projects
