Trina

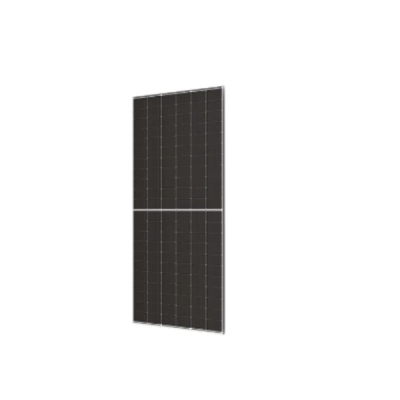

Trinasolar 615W Vertex N Dual Glass N-type i-TOPCon Solar Module - Silver Frame Transparent BiFacial
Trinasolar 615W Vertex N Dual Glass N-type i-TOPCon Solar Module - Silver Frame Transparent BiFacial
Couldn't load pickup availability
SKU:TSM-615NEG19RC.20
The Trinasolar 615W Vertex N Dual Glass N-Type i-TOPCon Solar Module - Silver Frame Transparent Bifacial is a high-power bifacial solar panel designed for commercial, industrial and utility-scale PV installations. Delivering 615W output with up to 23.0% module efficiency, it combines advanced N-Type technology with durable dual-glass construction for excellent long-term energy generation.
Key Features
- 615W rated output
- Up to 23.0% module efficiency
- N-Type i-TOPCon monocrystalline cells
- Bifacial design for additional rear-side generation
- Transparent dual-glass construction
- Silver anodised aluminium frame
- Excellent low-light performance
- Low long-term degradation
- 1500V DC system compatibility
- 12-year product warranty
- 30-year linear power warranty
High-Yield Bifacial Performance
The Vertex N combines high-efficiency N-Type i-TOPCon cells with a transparent rear glass, allowing the module to generate electricity from both direct and reflected sunlight. This can increase total energy yield on suitable ground-mounted and elevated installations while the low temperature coefficient supports strong performance during warmer conditions.
Built for Large Solar Projects
With 615W available from each module, fewer panels can be required to achieve a given system capacity, helping optimise mounting, cabling and other balance-of-system costs. Dual heat-strengthened glass provides excellent protection against moisture and demanding environmental conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TSM-615NEG19RC.20 |
| Rated Power | 615W |
| Module Efficiency | Up to 23.0% |
| Cell Technology | N-Type i-TOPCon Monocrystalline |
| Module Type | Bifacial Dual Glass |
| Maximum Power Voltage (Vmp) | 49.6V |
| Maximum Power Current (Imp) | 12.40A |
| Open Circuit Voltage (Voc) | 58.5V |
| Short Circuit Current (Isc) | 13.30A |
| Maximum System Voltage | 1500V DC |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 33.7kg |
| Frame | Silver Anodised Aluminium Alloy |
Long-Term Performance
N-Type technology provides low degradation, with approximately 1% maximum degradation in the first year followed by 0.4% annually thereafter. Combined with Trinasolar's 30-year linear power warranty, the Vertex N 615W is designed for dependable generation throughout the lifetime of large-scale solar installations.
Ideal For
- Commercial and industrial solar installations
- Utility-scale solar farms
- Ground-mounted PV arrays
- Bifacial solar systems
- High-capacity renewable energy projects
