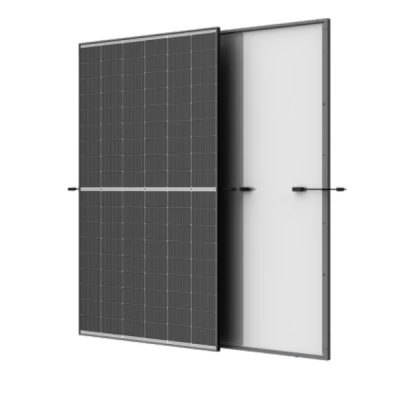

Trinasolar 510W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Black Frame/White Backsheet

Trinasolar 510W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Black Frame/White Backsheet

£92.99
£92.99
Sale Sold out
Tax included. Shipping calculated at checkout.

TSM-510NEG18R.28

The Trinasolar 510W Vertex S+ Dual Glass N-Type i-TOPCon Solar Module - Black Frame/White Backsheet is a high-efficiency rooftop solar panel designed for residential, commercial and industrial installations. Delivering 510W output with 22.9% module efficiency, it combines advanced N-Type technology with durable dual-glass construction for excellent long-term energy generation.

Key Features

  • 510W rated output
  • 22.9% module efficiency
  • N-Type i-TOPCon monocrystalline technology
  • Durable 1.6mm + 1.6mm dual-glass construction
  • Black anodised aluminium frame
  • Low -0.29%/°C Pmax temperature coefficient
  • Excellent low-light and high-temperature performance
  • 5400Pa front and 2400Pa rear mechanical load resistance
  • Compatible with mainstream inverters, optimisers and mounting systems
  • 30-year power warranty

High Power in a Rooftop-Friendly Format

At 510W, the Vertex S+ provides excellent power density while remaining under two metres long, making it practical for rooftop installation. High efficiency helps maximise installed capacity and can reduce the number of modules, mounting components and connections required for a given system size.

Durable Dual-Glass Construction

The 1.6mm + 1.6mm dual-glass design improves resistance to moisture, microcracks and environmental stress. The module is engineered for demanding conditions including salt mist, ammonia, sand, high temperatures and humidity, providing dependable performance across a wide range of installations.

Technical Specifications

Specification Value
Model TSM-510NEG18R.28
Rated Power 510W
Module Efficiency 22.9%
Cell Technology N-Type i-TOPCon Monocrystalline
Module Construction Dual Glass
Glass 1.6mm Front / 1.6mm Rear
Pmax Temperature Coefficient -0.29%/°C
Dimensions 1961 × 1134 × 30mm
Weight 23.5kg
Frame Black Anodised Aluminium Alloy
Maximum Front Load 5400Pa
Maximum Rear Load 2400Pa

Long-Term Performance

N-Type technology limits degradation to approximately 1% in the first year followed by 0.4% annually thereafter. Combined with a 30-year power warranty, the Vertex S+ 510W is engineered to provide dependable generation throughout the lifetime of the solar installation.

Ideal For

  • Residential rooftop solar systems
  • Commercial and industrial rooftops
  • Solar and battery storage systems
  • High power-density rooftop arrays
  • Grid-connected and off-grid solar installations
