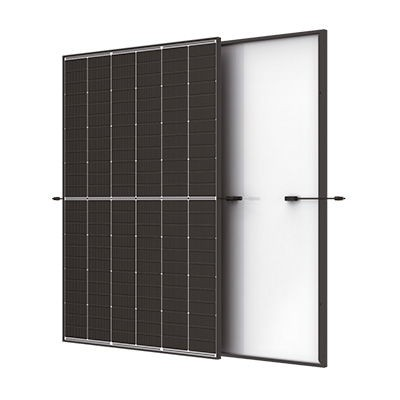

Trinasolar 465W Vertex S+ Dual Glass N-type iTOPCon Solar Module - Black Frame/White Backsheet
Trinasolar 465W Vertex S+ Dual Glass N-type iTOPCon Solar Module - Black Frame/White Backsheet
Couldn't load pickup availability
SKU:TSM-465NEG9R.28
The Trinasolar 465W Vertex S+ Dual Glass N-Type i-TOPCon Solar Module - Black Frame/White Backsheet is a high-efficiency rooftop solar panel combining 465W output with advanced N-Type technology and durable dual-glass construction. With a compact 1762 × 1134mm format, it is ideal for residential, commercial and industrial solar installations where roof space, reliability and long-term energy yield matter.
Key Features
- 465W rated output
- 23.3% module efficiency
- N-Type i-TOPCon monocrystalline cells
- Lightweight dual-glass construction
- Black anodised aluminium frame with white rear appearance
- 0/+5W positive power tolerance
- Excellent low-light and high-temperature performance
- IP68-rated junction box
- High mechanical load resistance
- 25-year product warranty
- 30-year power warranty
High-Efficiency N-Type Solar Technology
Trinasolar's N-Type i-TOPCon technology delivers high conversion efficiency and strong real-world energy generation. At 465W and 23.3% efficiency, the Vertex S+ provides excellent power density while remaining compact enough for straightforward rooftop installation.
Durable Dual-Glass Construction
The lightweight dual-glass design uses 1.6mm heat-strengthened glass on both sides of the module, providing excellent resistance to moisture, harsh weather and mechanical stress. The panel is tested for loads of up to 5400Pa on the front and 4000Pa on the rear, making it a dependable choice for long-term solar installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TSM-465NEG9R.28 |
| Rated Power | 465W |
| Module Efficiency | 23.3% |
| Cell Technology | N-Type i-TOPCon Monocrystalline |
| Number of Cells | 144 |
| Power Tolerance | 0/+5W |
| Maximum System Voltage | 1500V DC |
| Dimensions | 1762 × 1134 × 30mm |
| Weight | 21.0kg |
| Front Glass | 1.6mm AR-Coated Heat-Strengthened Glass |
| Rear Glass | 1.6mm Heat-Strengthened Glass |
| Frame | Black Anodised Aluminium Alloy |
| Junction Box | IP68 |
| Maximum Front Load | 5400Pa |
| Maximum Rear Load | 4000Pa |
Long-Term Performance
The Vertex S+ is engineered for reliable generation over decades, with low degradation and a long-term power guarantee. Its combination of high efficiency, N-Type cells and dual-glass protection makes it particularly well suited to long-life rooftop solar and battery storage systems.
Ideal For
- Residential rooftop solar PV systems
- Commercial and industrial solar installations
- Hybrid solar and battery storage systems
- High power-density rooftop arrays
- Grid-connected and off-grid solar systems
