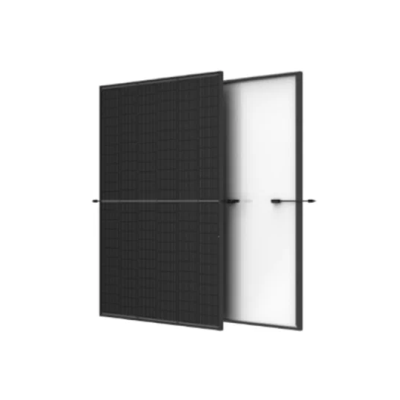

Trinasolar 460W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Full Black
Trinasolar 460W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Full Black
Couldn't load pickup availability
SKU:TSM-460NEG9R.25
The Trinasolar 460W Vertex S+ Dual Glass N-Type i-TOPCon Solar Module – Full Black combines high-efficiency solar technology with a premium all-black appearance for residential and commercial rooftops. Delivering 460W output and 23.0% efficiency from a compact 1762 × 1134mm footprint, it is ideal where both energy yield and aesthetics matter.
Advanced N-Type i-TOPCon Ultra cells, lightweight dual-glass construction and excellent temperature performance provide dependable generation across a wide range of rooftop solar installations.
Key Features
- 460W rated output
- 23.0% module efficiency
- N-Type i-TOPCon Ultra monocrystalline technology
- Premium full black appearance
- Dual-glass construction
- Compact 1762 × 1134mm rooftop format
- Lightweight 21kg design
- Low -0.29%/°C temperature coefficient
- 1,500V DC maximum system voltage
- IP68-rated junction box
- 15-year product warranty
- 30-year power guarantee
Full Black N-Type Solar Panel
The black anodised aluminium frame and all-black appearance give the Vertex S+ a clean, premium finish particularly suited to visible residential rooftops. N-Type i-TOPCon Ultra technology delivers high conversion efficiency alongside strong low-light and high-temperature performance.
Lightweight Dual-Glass Construction
At just 21kg, the module combines easy rooftop handling with durable dual-glass construction. The 1.6mm heat-strengthened front and rear glass provides additional protection against environmental exposure, micro-cracks and rear-side damage.
Electrical Specifications
| Specification | Value |
|---|---|
| Rated Power | 460W |
| Module Efficiency | 23.0% |
| Maximum Power Voltage (Vmp) | 45.40V |
| Maximum Power Current (Imp) | 10.14A |
| Open Circuit Voltage (Voc) | 53.80V |
| Short Circuit Current (Isc) | 10.81A |
| Maximum System Voltage | 1,500V DC |
| Maximum Series Fuse | 25A |
| Temperature Coefficient of Pmax | -0.29%/°C |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Technology | N-Type i-TOPCon Ultra Monocrystalline |
| Construction | Dual Glass |
| Front Glass | 1.6mm Heat-Strengthened Glass |
| Rear Glass | 1.6mm Heat-Strengthened Glass |
| Frame | Black Anodised Aluminium Alloy |
| Dimensions | 1762 × 1134 × 30mm |
| Weight | 21kg |
| Junction Box | IP68 |
| Cable | 4.0mm² |
| Maximum Front Load | 5,400Pa |
| Maximum Rear Load | 4,000Pa |
Long-Term Performance
The Vertex S+ is backed by a 15-year product warranty and 30-year power guarantee, with maximum first-year degradation of 1% followed by 0.4% annual degradation thereafter.
| Warranty | Coverage |
|---|---|
| Product Warranty | 15 Years |
| Power Guarantee | 30 Years |
| First-Year Degradation | 1% |
| Annual Degradation Thereafter | 0.4% |
Ideal For
- Residential rooftop solar systems
- Premium full black solar installations
- Commercial rooftop PV systems
- Hybrid solar and battery storage systems
- Projects where appearance and high power density are priorities
