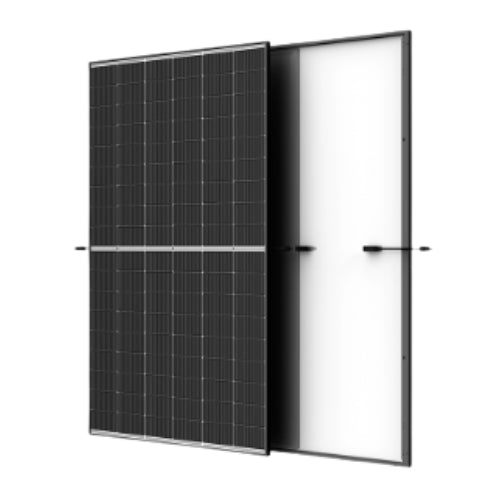

Trina Vertex S+ – MONO 510W – N-Type Dual Glass PV Module

The Trina Vertex S+ 510W N-Type Dual Glass Solar Panel (TSM-510-NEG18R.28) is a high-efficiency solar PV module combining Trina Solar's advanced N-Type i-TOPCon cell technology with a durable dual-glass construction. Delivering 510W of rated power and module efficiency of up to 22.9%, it is designed for residential rooftops, commercial solar installations, battery storage systems and larger off-grid solar projects.

Part of the Trina Vertex S+ range, this module combines high power density with practical dimensions and a relatively low 23.5kg weight, making it easier to handle and install than many oversized commercial solar panels.

Key Features

• 510W rated output
• Up to 22.9% module efficiency
• Advanced N-Type i-TOPCon cell technology
• Durable dual-glass construction
• High module power with low-voltage design
• Black aluminium frame
• Practical 1961 × 1134mm module dimensions
• Relatively lightweight 23.5kg construction
• MC4-compatible plug-in connectors
• Up to 15-year product warranty
• Up to 30-year power guarantee
• Suitable for residential, commercial and off-grid solar installations

510W High-Efficiency Solar Panel

With 510W rated output and module efficiency of up to 22.9%, the Trina Vertex S+ is designed to generate substantial solar power from a relatively compact footprint. This makes it particularly useful where available roof area is limited and installers want to maximise the total PV capacity that can be fitted.

Higher module power can also reduce the number of panels, mounting components and electrical connections required to achieve a target system capacity.

N-Type i-TOPCon Technology

The Vertex S+ uses Trina Solar's N-Type i-TOPCon cell technology, developed to improve conversion efficiency and long-term solar generation. The technology incorporates improvements including reduced contact resistance, enhanced rear reflection and improved cell-edge performance.

N-Type cells also provide strong long-term performance characteristics and resistance to common degradation mechanisms, making the module well suited to solar systems designed to generate energy reliably for decades.

Dual Glass Construction

The Trina Vertex S+ uses a dual-glass structure rather than a conventional glass and polymer backsheet design. The solar cells are protected between layers of glass, providing a robust module construction designed for long-term outdoor exposure.

This construction helps make the Vertex S+ an attractive option for residential and commercial installations where durability and long-term reliability are important considerations.

Technical Specifications

Designed for Easier Rooftop Installation

At 1961 × 1134mm and 23.5kg, the Vertex S+ offers high output without the size and weight associated with many larger commercial-format panels. This makes handling, positioning and rooftop installation more practical while still providing 510W of power from each module.

The black frame also provides a clean, modern appearance that works particularly well on residential rooftops and other visible installations.

High String Power and Low-Voltage Design

The Vertex S+ is engineered to combine high individual module output with a low-voltage design, allowing system designers to achieve strong string power while maintaining flexibility when configuring solar arrays.

As with any solar installation, the final string configuration should be checked against the maximum input voltage, MPPT voltage range and current limits of the chosen inverter or solar charge controller.

Typical Applications

• Residential rooftop solar PV systems
• Commercial rooftop solar installations
• Home battery storage systems
• Off-grid solar power systems
• DIY solar installations
• Garages, workshops and outbuildings
• Agricultural buildings
• Ground-mounted solar arrays
• Grid-connected renewable energy systems

Why Choose the Trina Vertex S+ 510W?

The Trina Vertex S+ 510W combines high 22.9% module efficiency with N-Type i-TOPCon technology, dual-glass construction and practical dimensions. It offers a strong balance between power output, physical size and weight, making it particularly attractive for rooftop installations where space and ease of handling matter.

With up to a 15-year product warranty and 30-year power guarantee, the TSM-510-NEG18R.28 is designed to provide dependable long-term solar generation across residential, commercial and off-grid renewable energy systems.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
