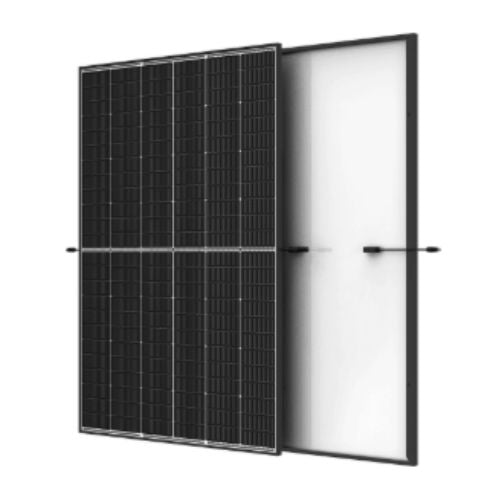

Trina Vertex S+ – MONO 460W – N-Type Dual Glass PV Module

The Trina Vertex S+ 460W N-Type Dual Glass Solar Panel (TSM-460-NEG9R.28) is a high-performance solar PV module designed for residential rooftops, commercial installations, battery storage systems and off-grid solar projects. Combining advanced N-Type monocrystalline cell technology with a durable dual-glass construction, the Vertex S+ delivers strong power output from a compact and relatively lightweight module.

At just 1762 × 1134mm and 21kg, this 460W panel is particularly well suited to residential and smaller rooftop installations where available space, handling and overall system power density are important.

Key Features

• 460W rated output
• Advanced N-Type monocrystalline solar cell technology
• Durable dual-glass construction
• Compact 1762 × 1134mm module footprint
• Lightweight 21kg design for easier rooftop installation
• Smart black aluminium frame
• 30mm frame depth
• MC4-compatible plug-in connectors
• MCS certified for UK solar PV installations
• Suitable for grid-connected, battery storage and off-grid solar systems

Compact 460W High-Power Solar Panel

The Trina Vertex S+ delivers 460W of rated solar power from a module measuring only 1762 × 1134mm. Its compact dimensions make it an excellent option for residential roofs where larger 500W+ commercial modules may be difficult to accommodate.

The combination of high output and manageable dimensions allows installers to maximise solar generation from available roof space while retaining greater flexibility when planning module layouts around roof edges, windows, chimneys and other obstacles.

Advanced N-Type Solar Technology

The TSM-460-NEG9R.28 uses modern N-Type monocrystalline solar cell technology, designed to provide excellent conversion performance and dependable long-term energy generation.

N-Type technology offers strong performance characteristics and improved resistance to common degradation mechanisms, making it particularly attractive for solar installations where reliable lifetime energy production is a priority.

Dual Glass Construction

The Vertex S+ uses a dual-glass structure rather than a conventional glass and polymer backsheet construction. The solar cells are protected within a robust glass structure designed to provide excellent durability throughout the working life of the module.

This construction makes the panel particularly suitable for long-term residential and commercial solar installations where durability, weather resistance and dependable performance are important.

Technical Specifications

Designed for Residential Rooftops

One of the main advantages of the Trina Vertex S+ 460W is its combination of high output and compact dimensions. At only 1762mm long and 21kg, it is easier to handle and position than many larger commercial-format solar modules.

This makes it particularly attractive for residential rooftops, garages, workshops and other installations where roof dimensions may limit the use of larger panels.

Black Frame Design

The black aluminium frame gives the Vertex S+ a clean and contemporary appearance, helping the module integrate neatly with modern residential roofs. The slim 30mm frame also keeps the overall profile relatively low while providing a robust structure for use with appropriately specified solar mounting systems.

Suitable for Solar and Battery Storage Systems

The Trina Vertex S+ 460W can be used across a wide range of grid-connected and off-grid solar installations. It can be paired with compatible string inverters, hybrid inverters, microinverters or MPPT solar charge controllers depending on the system design.

For off-grid and battery storage applications, installers should always confirm the panel's electrical characteristics against the voltage and current limits of the chosen inverter or MPPT charge controller before determining the final string configuration.

Typical Applications

• Residential rooftop solar PV systems
• Home battery storage systems
• Off-grid solar power systems
• DIY solar installations
• Commercial rooftop solar systems
• Garages and workshops
• Garden buildings and outbuildings
• Agricultural installations
• Ground-mounted solar arrays
• Grid-connected renewable energy systems

Why Choose the Trina Vertex S+ 460W?

The Trina Vertex S+ 460W offers an excellent balance between solar output, module dimensions and weight. Its compact 1762 × 1134mm footprint makes it especially attractive for residential rooftops while still providing a substantial 460W of rated power from each panel.

Combined with N-Type solar technology, dual-glass construction, a smart black frame and MCS certification, the TSM-460-NEG9R.28 is a versatile choice for modern residential, commercial and off-grid renewable energy systems.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
