Sungrow WiNet-S2 V11 Communication Dongle, Version S2

Sungrow WiNet-S2 V11 Communication Dongle, Version S2

£72.99
£72.99
Sale Sold out
Tax included. Shipping calculated at checkout.

ASM00874

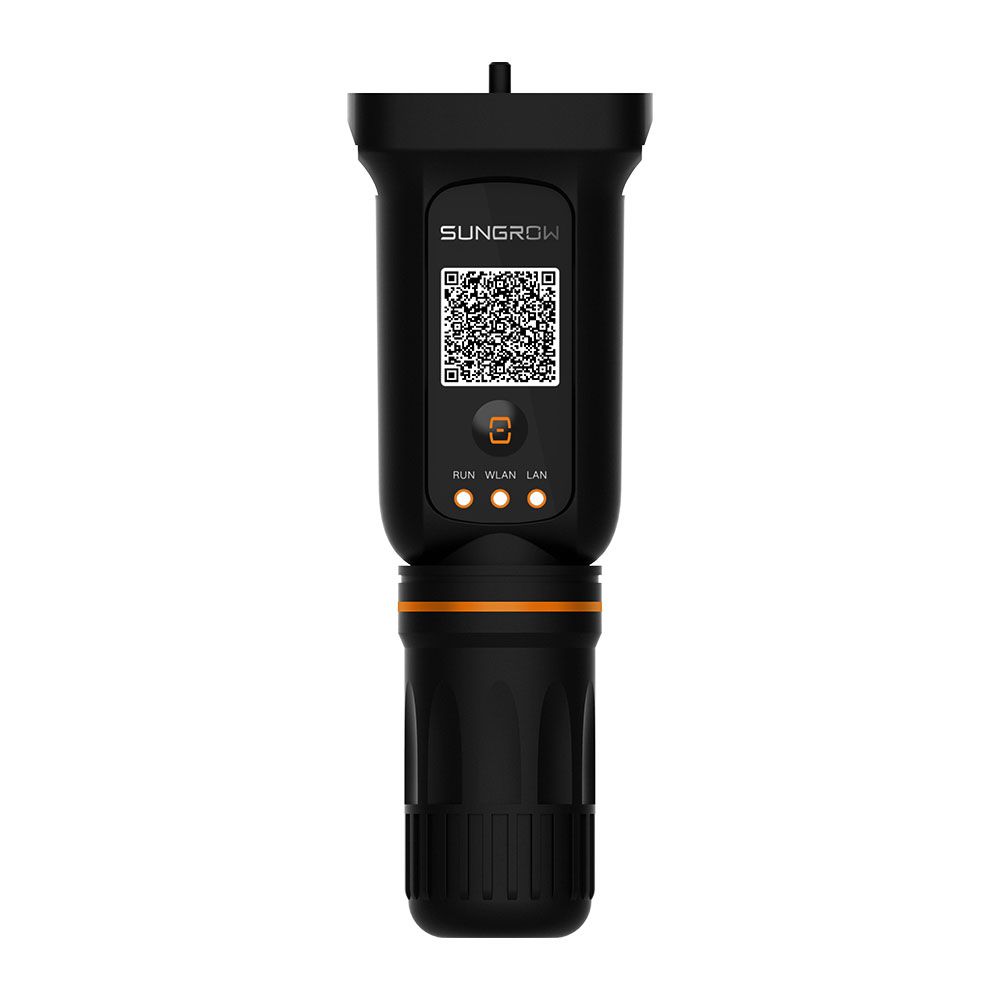

Sungrow WiNet‑S2 V11 Communication Dongle, Version S2

The Sungrow WiNet‑S2 V11 Communication Dongle (Version S2) is a cutting‑edge smart gateway that seamlessly connects Sungrow inverters to the iSolarCloud monitoring platform via dual-band Wi‑Fi (2.4 GHz) or Ethernet. With a fast 10‑second data refresh rate, it delivers real‑time system insights, allowing remote parameter adjustment, firmware upgrades, and secure encrypted data transmission—all in an IP66‑rated, plug‑and‑play package.

Key Features

  • Dual-mode connectivity: WLAN & Ethernet for flexible plant networking and one‑click iSolarCloud access
  • Automatic network setup via DHCP—just plug in and go
  • Remote commissioning, monitoring, firmware updates and parameter setup
  • Military-grade security with password protection and encrypted communication
  • Robust IP66 housing, ideal for harsh outdoor environments (–30 °C to +60 °C)
  • Compact design: 48 × 132 × 36 mm, lightweight and easy to mount

Technical Specifications

Specification Details
Model WiNet‑S2 V11
Connectivity Ethernet 10/100 Mbps; Wi‑Fi 802.11 b/g/n @2.4 GHz
Data refresh rate 10 s
Power supply 5 V DC, 2.1 A
Power consumption ≈ 1.3 W typ.
Temperature range –30 °C to +60 °C
Humidity ≤ 95 % (non‑condensing)
Max altitude ≤ 4000 m
Ingress protection IP66
Dimensions (W×H×D) 48 × 132 × 36 mm
Weight ~0.06 kg

Download the datasheet for Sungrow WiNet‑S2 V11 Communication Dongle here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
