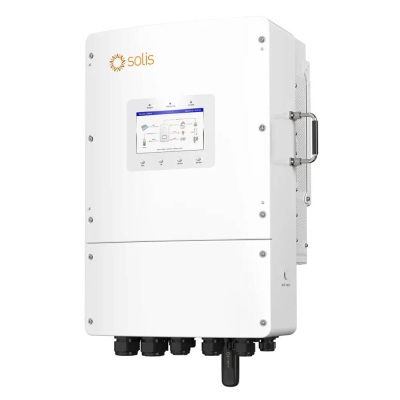

Solis S6 12kW 3 Phase Hybrid Inverter for LV Batteries

The Solis S6 12kW Three Phase Low Voltage Hybrid Inverter - S6-EH3P12K02-NV-YD-L is designed for high-consumption residential solar and battery storage installations requiring substantial three-phase power. Its 48V low-voltage battery architecture provides flexible energy storage without requiring a high-voltage battery stack.

With support for PV input up to 160% of rated DC power, the inverter can accommodate substantial solar arrays while high-current PV inputs provide compatibility with modern high-output modules. Intelligent energy management automatically controls solar generation, battery charging, household consumption and grid interaction.

Key Features

• 12kW three-phase hybrid inverter
• 48V low-voltage battery compatibility with supported lithium and lead-acid batteries
• Up to 160% PV oversizing for greater solar generation potential
• High-current PV inputs for latest-generation solar modules
• <10ms backup switching during grid outages
• 200% overload capability for 10 seconds in off-grid mode
• Three-phase unbalanced output for real-world household loads
• Generator integration for additional backup resilience
• Smart Load control to prioritise essential circuits
• Supports both AC and DC coupling
• Parallel operation with up to six inverters
• IP66 rated for durable installation

Designed for Larger Three-Phase Properties

The 12kW S6 is a strong option for larger homes, rural properties and other three-phase installations with significant electricity demand. It can maximise solar self-consumption, charge batteries during cheaper tariff periods and retain configurable battery capacity for backup.

Support for generators, off-grid operation and system expansion gives the S6-EH3P12K02-NV-YD-L considerably more flexibility than a conventional grid-tied inverter, making it an excellent choice for comprehensive solar and battery storage systems.
