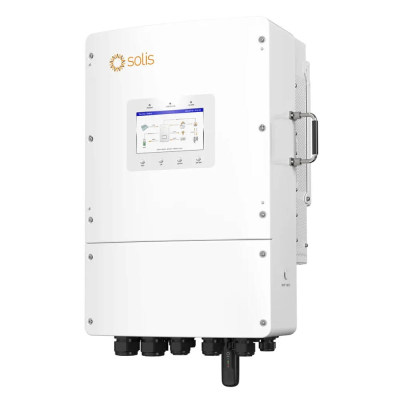

Solis S6 10kW 3 Phase Hybrid Inverter for LV Batteries

The Solis S6 10kW Three Phase Low Voltage Hybrid Inverter - S6-EH3P10K02-NV-YD-L combines high-output three-phase solar generation with 48V battery storage, intelligent energy management and powerful backup functionality. It is designed for larger residential properties requiring greater capacity than a conventional single-phase hybrid system.

The inverter supports PV input of up to 160% of its rated DC power, allowing larger solar arrays to be connected and helping maximise generation throughout the day. Compatibility with high-power PV modules and a wide range of low-voltage batteries provides excellent flexibility when designing a complete solar and storage system.

Key Features

• 10kW three-phase hybrid inverter
• 48V low-voltage battery compatibility
• Up to 160% PV oversizing for increased solar utilisation
• High-current PV compatibility for modern solar panels
• <10ms on/off-grid switching for backup power
• 200% overload for 10 seconds in off-grid operation
• Three-phase unbalanced output for uneven household loads
• Generator support with flexible connection and automatic control
• Smart Load management for prioritising critical loads
• AC and DC coupling for flexible system design and expansion
• Up to six compatible inverters in parallel
• IP66 protection for dependable long-term operation

High-Capacity Home Energy Storage

The S6-EH3P10K02-NV-YD-L intelligently manages energy between the solar array, 48V battery bank, property and grid. Stored solar power can be used overnight or during peak tariff periods, while backup reserves can be configured to retain battery capacity for grid failures.

For larger three-phase homes, workshops and other high-consumption properties, this 10kW Solis hybrid inverter offers an excellent combination of low-voltage battery flexibility, strong solar capacity and advanced backup performance.
