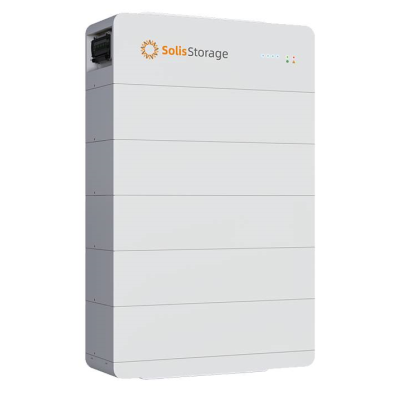

Solis FlexHome 5kWh Low Voltage Battery
Solis FlexHome 5kWh Low Voltage Battery
Couldn't load pickup availability
SKU:FlexHome-5kwh-L
The Solis FlexHome 5kWh Low Voltage Battery is a modular LiFePO4 home battery designed for flexible residential solar energy storage. Starting at 5kWh and capable of expanding as household requirements grow, the FlexHome combines 100% depth of discharge, IP66 protection, low-temperature heating and long cycle life in a scalable low-voltage battery platform.
Key Features
- 5kWh nominal battery capacity
- Safe and long-life LiFePO4 battery chemistry
- 100% depth of discharge (DoD)
- More than 6,000 charge/discharge cycles under specified test conditions
- Modular and expandable FlexHome battery platform
- Up to 40kWh capacity per stack
- Up to 4 systems can be connected in parallel
- Built-in heating for low-temperature charging
- IP66-rated enclosure
- CAN and RS485 communication
- Natural cooling for quiet operation
Battery Storage That Can Grow With Your Home
The FlexHome platform is designed for homeowners who want to start with a smaller battery and retain the option to expand later. The system starts at 5kWh and can scale up to 40kWh per stack, making it suitable for everything from everyday solar self-consumption to larger home energy storage requirements.
Built for Everyday Energy Storage
LiFePO4 battery chemistry provides excellent safety and longevity for regular cycling, while 100% depth of discharge allows homeowners to make full use of the available battery capacity. The IP66 enclosure and integrated heating function support reliable operation across changing environmental conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Model | FlexHome-5kwh-L |
| Battery Type | LiFePO4 |
| Nominal Capacity | 5kWh |
| Operating Voltage | 44.8 - 57.6V |
| Rated Cell Capacity | 100Ah |
| Recommended Charge / Discharge Current | 50A |
| Maximum Sustainable Charge Current | 50A |
| Maximum Sustainable Discharge Current | 100A |
| Depth of Discharge | 100% |
| Cycle Life | >6,000 Cycles / 10 Years |
| Communication | CAN / RS485 |
| Maximum Capacity per Stack | 40kWh |
| Parallel Expansion | Up to 4 Systems |
| Charging Temperature | -20°C to +55°C with Heating Function |
| Ingress Protection | IP66 |
| Cooling | Natural Cooling |
| Installation | Floor Mounted / Wall Mounted |
| Dimensions | 800 × 480 × 285mm |
| Weight | 70kg |
Ideal For
- Residential solar battery storage
- Expandable home energy storage systems
- Increasing solar self-consumption
- Time-of-use and off-peak electricity storage
- Homes expecting future increases in electricity demand
- Compatible Solis low-voltage hybrid inverter systems
Please note: The FlexHome is a modular battery platform. Check the required Solis FlexHome control equipment and compatible inverter configuration when designing the complete battery system.
