Solis
Solis 5G 6.0kW Low Voltage Solar Inverter - 3 Phase with DC
Solis 5G 6.0kW Low Voltage Solar Inverter - 3 Phase with DC
Couldn't load pickup availability
SKU:S5-GR3P6K-LV

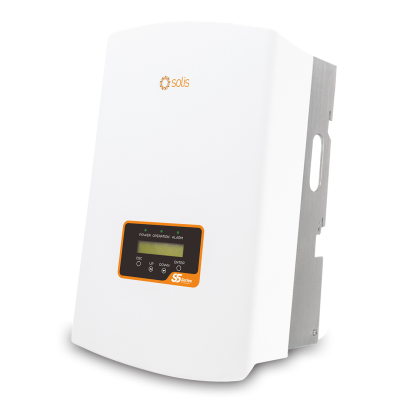

Solis 5G 6.0kW Low Voltage Solar Inverter
The Solis 5G 6.0kW Low Voltage Solar Inverter is a reliable and efficient solution for residential, small industrial, and commercial PV systems. Designed for flexibility and high performance, this inverter is a preferred choice for diverse applications, delivering superior energy generation and operational efficiency.
With a maximum efficiency of 98.0%, the inverter supports string currents up to 16A and enables 150% DC/AC ratio for optimised performance. Its dual MPPT design ensures precise energy tracking and enhanced system adaptability. The inverter’s wide voltage range and low startup voltage make it suitable for various PV module configurations, while AFCI protection proactively reduces fire risks, ensuring safety and reliability.
The compact design allows for easy installation and maintenance, while advanced features like export power control and automatic voltage stabilisation technology ensure efficient operation even in weak grid conditions. Integration with SolisCloud enables remote monitoring, upgrades, and control, providing seamless system management. However, please note that this product is not suitable for use in the UK.
Important Notice
Warning: This product is not suitable for use in the UK.
Key Features
- Max. efficiency: 98.0%
- String current up to 16A

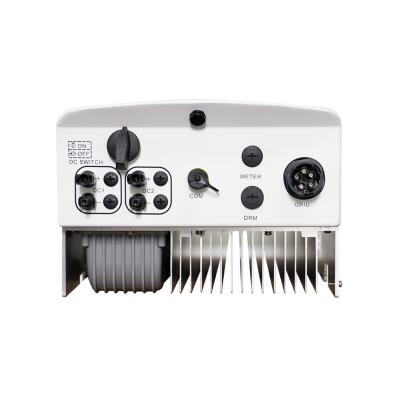

- Dual MPPT design for precise energy tracking
- Wide voltage range and low startup voltage
- AFCI protection to proactively reduce fire risks
- Supports export power control
- Compact design for easy installation and maintenance
- 150% DC/AC ratio for optimised performance
- Supports high-power modules to lower installation costs
- Integration with SolisCloud for remote monitoring and upgrades
- Automatic voltage stabilisation technology for weak grid conditions
- IP66 protection level
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Solis |
| Phases | 3 Phase |
| Power Rating | 6 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 2 |
| Built-in Communication | Optional |
| Commodity Code | 85044085 |
| Dimensions (H x W x D) | 310 x 563 x 219 mm |
Download the datasheet for the Solis 5G 6.0kW Low Voltage Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
