Solis 5G 30kW Solar Inverter - 3 Phase with DC
Solis 5G 30kW Solar Inverter - 3 Phase with DC
Couldn't load pickup availability
SKU:S5-GC30K-DC

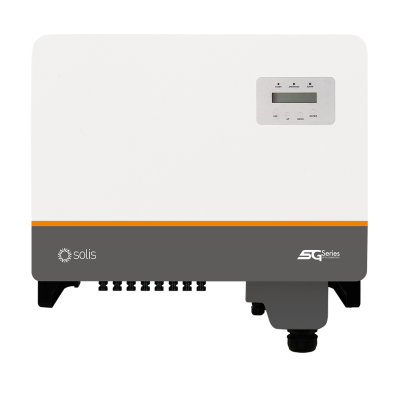

Solis 5G 30kW Solar Inverter
The Solis 5G 30kW Solar Inverter is an advanced and flexible solution for commercial PV systems. With a 3/4 MPPT design, this inverter supports multiple orientation system configurations, ensuring a smaller environmental impact while maximising energy generation efficiency. Its cutting-edge technology and durable design make it ideal for diverse solar installations.
Delivering a maximum efficiency of 98.7%, the inverter supports string currents up to 16A and offers 150%+ DC oversizing capability. The wide voltage range and low startup voltage enhance adaptability to various system requirements. Safety features such as AFCI protection proactively reduce fire risks, while intelligent string monitoring and Smart I-V curve scanning simplify diagnostics and performance optimisation. The night-time PID recovery function (optional) further improves system yield.
The inverter features a fan-less natural convection design, ensuring a longer lifespan with minimal maintenance. Seamless integration with SolisCloud enables remote monitoring, upgrades, and control, while support for RS485, WiFi, and GPRS reduces installation costs with simplified wiring. Its IP66-rated enclosure guarantees durability in challenging environments.
Key Features
- Max. efficiency: 98.7%
- String current up to 16A
- 3/4 MPPT design for flexible system orientation
- Fan-less natural convection design for longer lifespan
- Wide voltage range and low startup voltage
- AFCI protection to proactively reduce fire risks
- Supports export power control
- Intelligent string monitoring and Smart I-V curve scanning
- Night-time PID recovery function (optional) to increase system yield
- Supports RS485, WiFi, and GPRS communication
- Supports aluminium wire access to reduce costs
- Globally recognised branded components for enhanced durability
- IP66 protection level
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Commercial |
| Manufacturer | Solis |
| Phases | 3 Phase |
| Power Rating | 30 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 3 |
| Built-in Communication | Optional |
| Commodity Code | 85044086 |
| Dimensions (H x W x D) | 629 x 647 x 252 mm |
Download the datasheet for the Solis 5G 30kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
