Solis 5G 30kW Low Voltage Solar Inverter - 3 Phase with DC

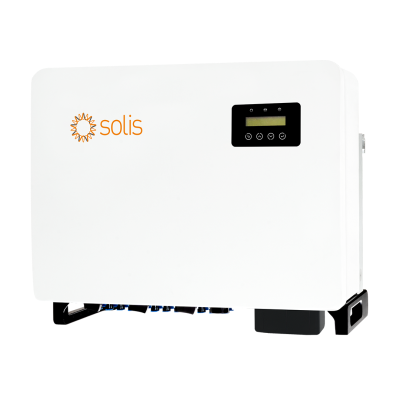

Solis 5G 30kW Low Voltage Solar Inverter

The Solis 5G 30kW Low Voltage Solar Inverter is a high-performance solution designed for commercial PV systems. With its advanced 4 MPPT design, this inverter offers greater flexibility in system configurations, enabling multiple orientation designs while maintaining high generation efficiency and minimising environmental impact.

Delivering a maximum efficiency of 98.4%, the inverter supports string currents of up to 16A and accommodates 150%+ DC oversizing through 8 string inputs, reducing installation costs. Safety and reliability are enhanced with AFCI protection to proactively minimise fire risks and intelligent string monitoring with Smart I-V curve scanning for efficient diagnostics. The night-time PID recovery function (optional) further improves overall system yield.

The Solis S5-GC(25-36)K-LV features intelligent redundant fan-cooling for reliable operation and supports aluminium wire access to lower costs. The DC side includes a "Y" connector for enhanced design simplicity. Seamless integration with SolisCloud provides remote monitoring, upgrades, and control, while GPRS/WiFi communication reduces wiring complexity and installation costs. Its IP66-rated enclosure ensures durability in harsh environments.

Important Notice

Warning: This product is not suitable for use in the UK.

Key Features

• Max. efficiency: 98.4%
• String current up to 16A
• 4 MPPT design for flexible system orientation
• Night-time SVG function for voltage stability
• Supports export power control
• 150%+ DC oversizing with 8 string inputs
• AFCI protection to proactively reduce fire risks
• Intelligent string monitoring and Smart I-V curve scanning
• Night-time PID recovery function (optional) to increase system yield
• Supports GPRS/WiFi communication with reduced wiring costs
• DC side supports "Y" connector for design flexibility
• Intelligent redundant fan-cooling for reliable operation
• Supports aluminium wire access to reduce costs
• Globally recognised branded components for extended lifespan
• IP66 protection level

Technical Specifications

Download the datasheet for the Solis 5G 30kW Low Voltage Solar Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
