Solis 4.6kW Solar Inverter - 1 Phase with DC
Solis 4.6kW Solar Inverter - 1 Phase with DC
Couldn't load pickup availability
SKU:S6-GR1P4.6K-DC

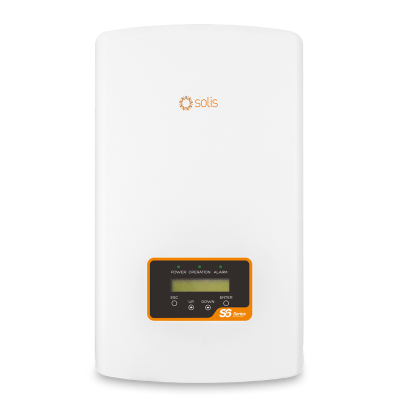

Solis 4.6kW Solar Inverter
The Solis 4.6kW Solar Inverter is a 4.6kW single-phase inverter designed specifically for residential PV plants. With a dual MPPT design and a precise MPPT algorithm, this inverter ensures optimised energy generation and compatibility with high-efficiency and bi-facial solar modules. Its maximum input current of 14A per string allows seamless integration with advanced PV systems.

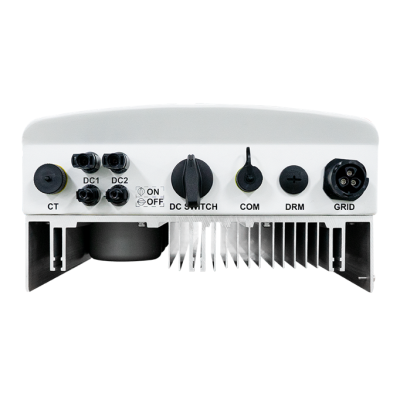

This model comes with an integrated DC switch for enhanced safety and protection. The inverters in the S6 Series feature a compact and lightweight design, enabling easy installation, along with super high-frequency switching technology for improved performance. Additionally, the integrated Export Power Manager (EPM) and AFCI (DC arc-fault circuit protection) proactively minimise fire risks and ensure a secure and reliable operation.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Solis |
| Phases | 1 Phase |
| Power Rating | 4.6 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| Built-in Communication | Optional |
| Commodity Code | 85044085 |
| Dimensions (H x W x D) | 543 x 310 x 160 mm |
| Max String Current | 14A |
| Safety Features | Integrated AFCI, Export Power Manager (EPM) |
| Design Features | Compact, Lightweight, Super High Frequency Switching Technology |
Download the datasheet for the Solis 4.6kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
