Solis 4.0kW Solar Inverter - 1 Phase with DC
Solis 4.0kW Solar Inverter - 1 Phase with DC
Couldn't load pickup availability
SKU:S6-GR1P4K-DC

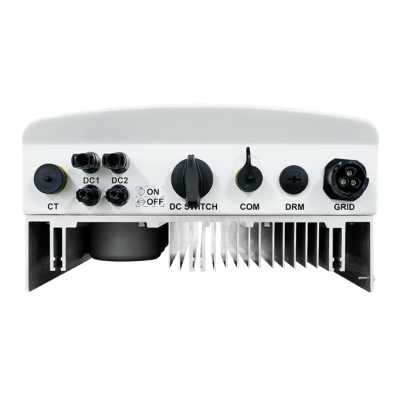

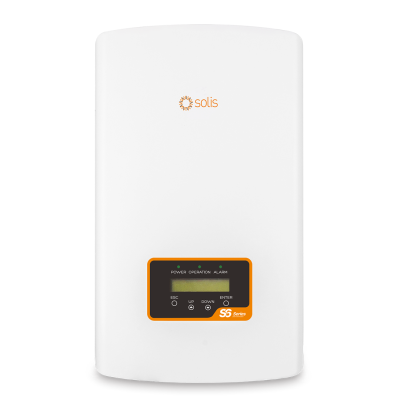

Solis 4.0kW Solar Inverter
The Solis 4.0kW Solar Inverter is purpose-built for residential PV plants, offering a high-performance solution for optimising solar energy generation. With a maximum input current of 14A per string, it is fully compatible with high-efficiency and bi-facial solar modules. Its compact and lightweight design ensures quick and easy installation, while its IP66 protection level guarantees durability and reliable operation in various conditions.
Safety is prioritised with the integrated AFCI (DC arc-fault circuit protection) function, which proactively reduces fire risks. The inverter features a 2 MPPT design with a precise MPPT algorithm, a wide voltage range, and a low startup voltage, making it adaptable to diverse system requirements. The integrated Export Power Manager (EPM) and super high-frequency switching technology further enhance efficiency and grid compatibility, making this inverter a top choice for residential installations.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Solis |
| Phases | 1 Phase |
| Power Rating | 4 kW |
| Inverter Type | String Inverter |
| Built-in DC | Yes |
| No. of MPPT | 2 |
| Built-in Communication | Optional |
| Commodity Code | 85044085 |
| Dimensions (H x W x D) | 543 x 310 x 160 mm |
| Max Efficiency | 97.7% |
| Max String Current | 14A |
| Voltage Range | Wide range with low startup voltage |
| Safety Features | AFCI, Export Power Manager (EPM) |
| Protection Level | IP66 |
Download the datasheet for the Solis 4.0kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
