Solis 3.0kW Solar Inverter - 1 Phase with DC
Solis 3.0kW Solar Inverter - 1 Phase with DC
Couldn't load pickup availability
SKU:S6-GR1P3K-DC

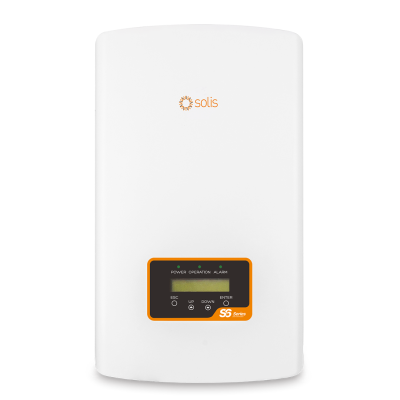

Solis 3.0kW Solar Inverter
The Solis 3.0kW Solar Inverter is the latest generation of residential single-phase solar inverters from Solis. Designed for small residential and commercial rooftop installations, this advanced inverter is a market leader in affordability and performance. Its compact design and cutting-edge features make it an excellent choice for optimising solar energy generation.
This inverter boasts a wide input voltage range, low startup voltage of 120V, and dual MPPT design, enabling precise maximum power point tracking for enhanced efficiency. With a maximum efficiency of over 97.7%, the Solis 3.0kW S6 delivers exceptional energy conversion and supports sustainable energy needs effectively.

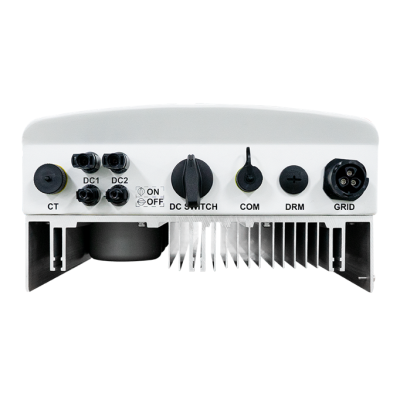

For safety and flexibility, the inverter includes integrated DC arc-fault circuit protection (AFCI) and a built-in DC switch, eliminating the need for an external DC isolator. Additionally, the export limitation feature, requiring a CT clamp (sold separately), ensures compliance with grid export restrictions, making it ideal for modern smart grid requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Maximum String Input Current | 14A |
| Startup Voltage | 120V |
| Max Efficiency | 97.7% |
| Input Voltage Range | Wide range for better generation and low startup |
| MPPT Design | Dual MPPT with precise algorithm |
| Export Limitation | Built-in (CT clamp required, sold separately) |
| Safety Features | AFCI (DC arc-fault protection), Integrated DC Switch |
| Warranty | 5 years (option to extend to 10 or 20 years) |
| Manufacturer Part Number | S6-GR1P3K-DC |
Download the datasheet for the Solis 3.0kW Solar Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
