SolaX - X3 Pro - 30kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 30kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,523.99
£1,523.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-243006

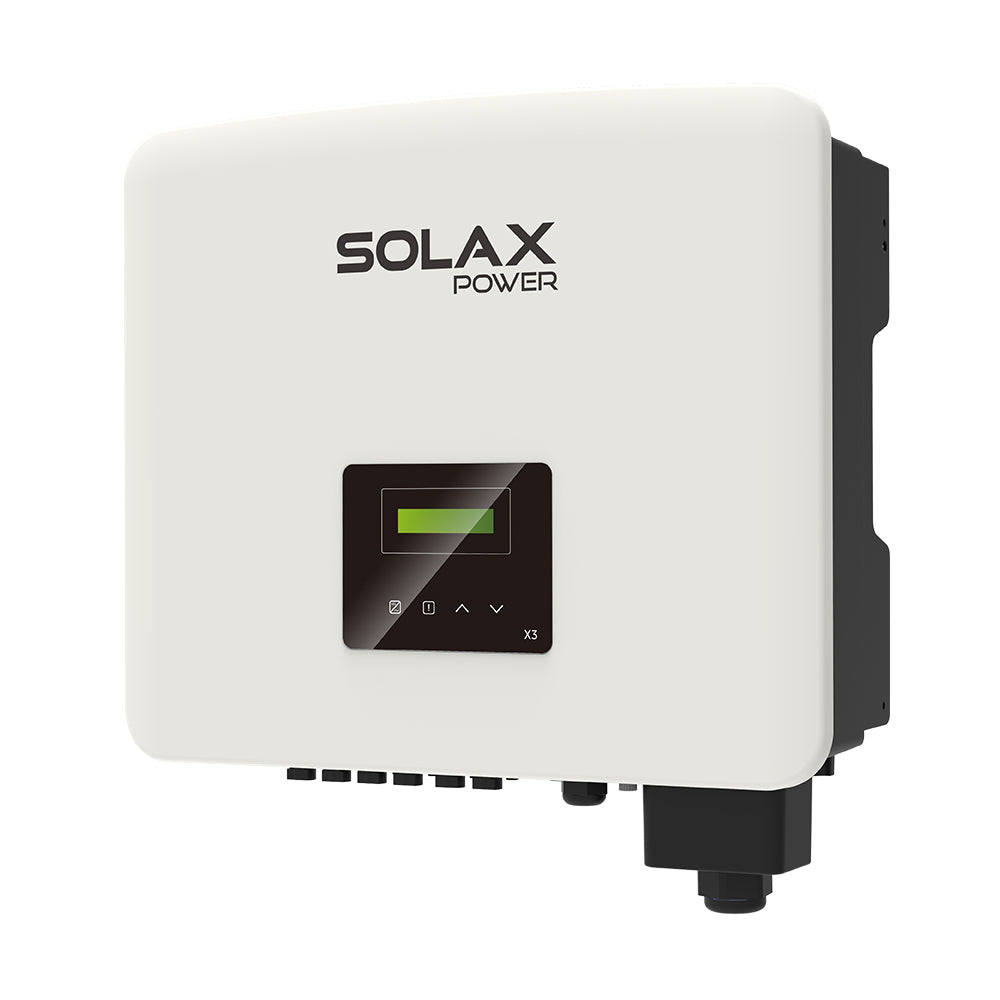

SolaX X3 Pro 30kW 3 Phase with DC Switch & WiFi (SX-243006)

The SolaX X3 Pro 30kW inverter is a high-performance three-phase solar inverter designed to maximise energy efficiency and reliability. With a wide MPPT voltage range and a maximum input voltage of 800V, it ensures superior solar energy harvesting, making it an ideal solution for commercial and large-scale residential installations.

Built for durability, the X3 Pro 30kW is IP66-rated for protection against dust and water, ensuring long-lasting operation in various environmental conditions. Featuring a fanless design, it operates silently while maintaining optimal heat dissipation. Integrated WiFi provides real-time system monitoring via the SolaX Cloud platform, allowing for remote performance tracking and advanced energy management. The optional ‘plug & play’ WiFi module ensures effortless integration and connectivity.

Key Features:

  • Maximum efficiency of 98.5%
  • Three MPPTs for optimal energy harvesting
  • Wide MPPT voltage range for increased solar energy capture
  • IP66-rated for superior protection in all weather conditions
  • Remote monitoring via integrated WiFi
  • Low start-up voltage for improved system performance
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-30K-G2
Max. PV Array Input Power 42,000 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 3
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 30,000 W
Max. AC Output Apparent Power 33,000 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.5%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 28 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 30kW Inverter here.
