SolaX - X3 Pro - 25kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 25kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,490.99
£1,490.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-242506

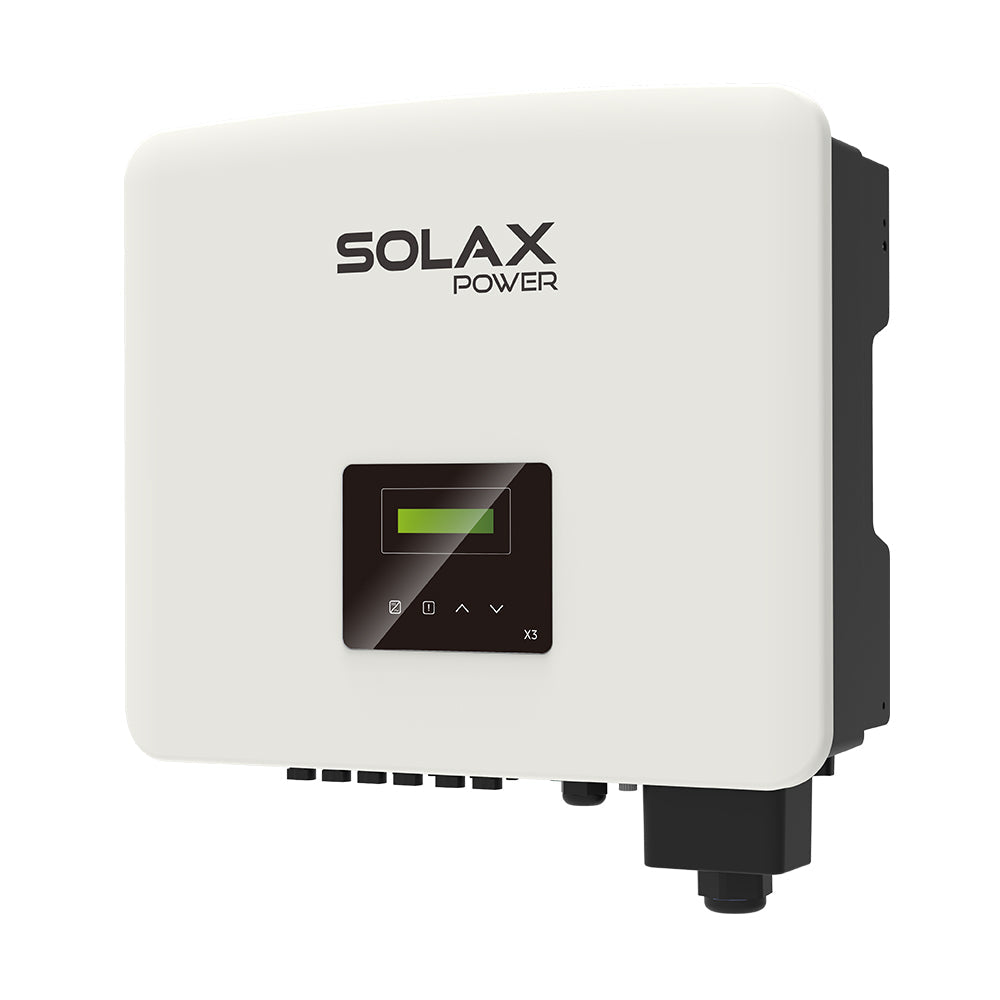

SolaX X3 Pro 25kW 3 Phase with DC Switch & WiFi (SX-242506)

The SolaX X3 Pro 25kW inverter is a high-efficiency, three-phase solar inverter designed for superior energy conversion in residential and commercial solar installations. Featuring three MPPTs for precise solar tracking, it ensures maximum energy harvesting from multiple panel orientations. With a wide MPPT voltage range and a maximum input voltage of 800V, this inverter optimises performance in various solar conditions.

Built for durability and reliability, the X3 Pro 25kW is IP66-rated, providing excellent protection against dust and water ingress. It operates silently with a fanless design while maintaining efficient heat dissipation. Integrated WiFi enables real-time system monitoring via the SolaX Cloud platform, giving users remote access to system performance for enhanced energy management. The optional ‘plug & play’ WiFi module ensures effortless connectivity and monitoring.

Key Features:

  • Maximum efficiency of 98.5%
  • Three MPPTs for optimised energy harvesting
  • Wide MPPT voltage range for increased energy capture
  • IP66-rated for superior protection in all weather conditions
  • Remote monitoring via integrated WiFi
  • Low start-up voltage for improved system performance
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-25K-G2
Max. PV Array Input Power 35,000 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 3
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 25,000 W
Max. AC Output Apparent Power 27,500 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.5%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 28 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 25kW Inverter here.
