Solax

SolaX - X3 Pro - 20kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 20kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,459.99
£1,459.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-232006

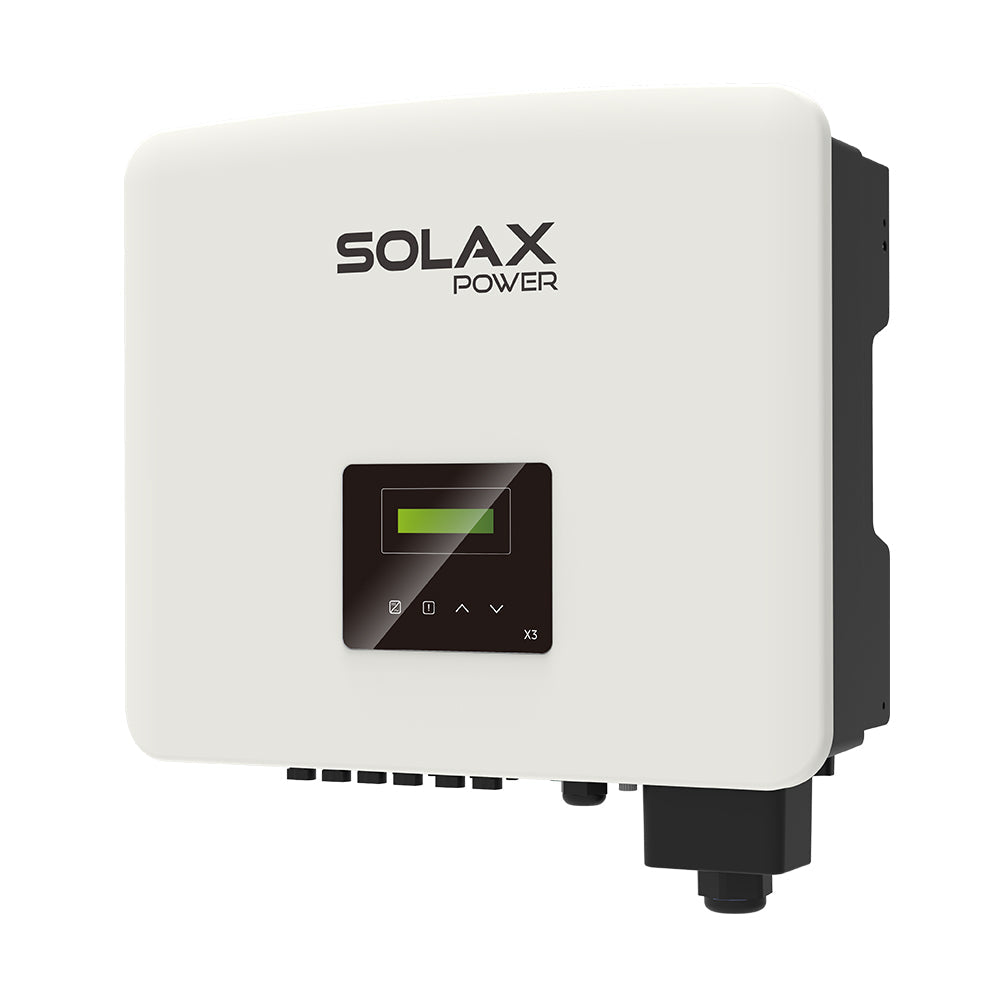

SolaX X3 Pro 20kW 3 Phase with DC Switch & WiFi (SX-232006)

The SolaX X3 Pro 20kW inverter is an advanced three-phase solar inverter engineered for maximum energy efficiency, reliability, and superior performance. Featuring a wide MPPT voltage range, it optimises solar energy harvesting and supports a maximum input voltage of 800V, ensuring enhanced system flexibility and efficiency.

With a maximum efficiency of 98.5%, the X3 Pro is designed to meet the demands of both residential and commercial solar installations. Built to last, it is IP66-rated for protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The fanless design allows for silent operation while maintaining effective heat dissipation. Integrated WiFi enables seamless real-time monitoring via the SolaX Cloud platform, offering remote access to system performance for enhanced energy management.

Key Features:

  • Maximum efficiency of 98.5%
  • Dual MPPT for optimal solar tracking
  • Wide MPPT voltage range for increased energy capture
  • IP66-rated for durability in all weather conditions
  • Remote monitoring via integrated WiFi
  • Low start-up voltage for improved system performance
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-20K-G2
Max. PV Array Input Power 30,000 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 2
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 20,000 W
Max. AC Output Apparent Power 22,000 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.5%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 26 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 20kW Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.

View full details
