SolaX - X3 Pro - 15kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 15kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,280.99
£1,280.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-231506

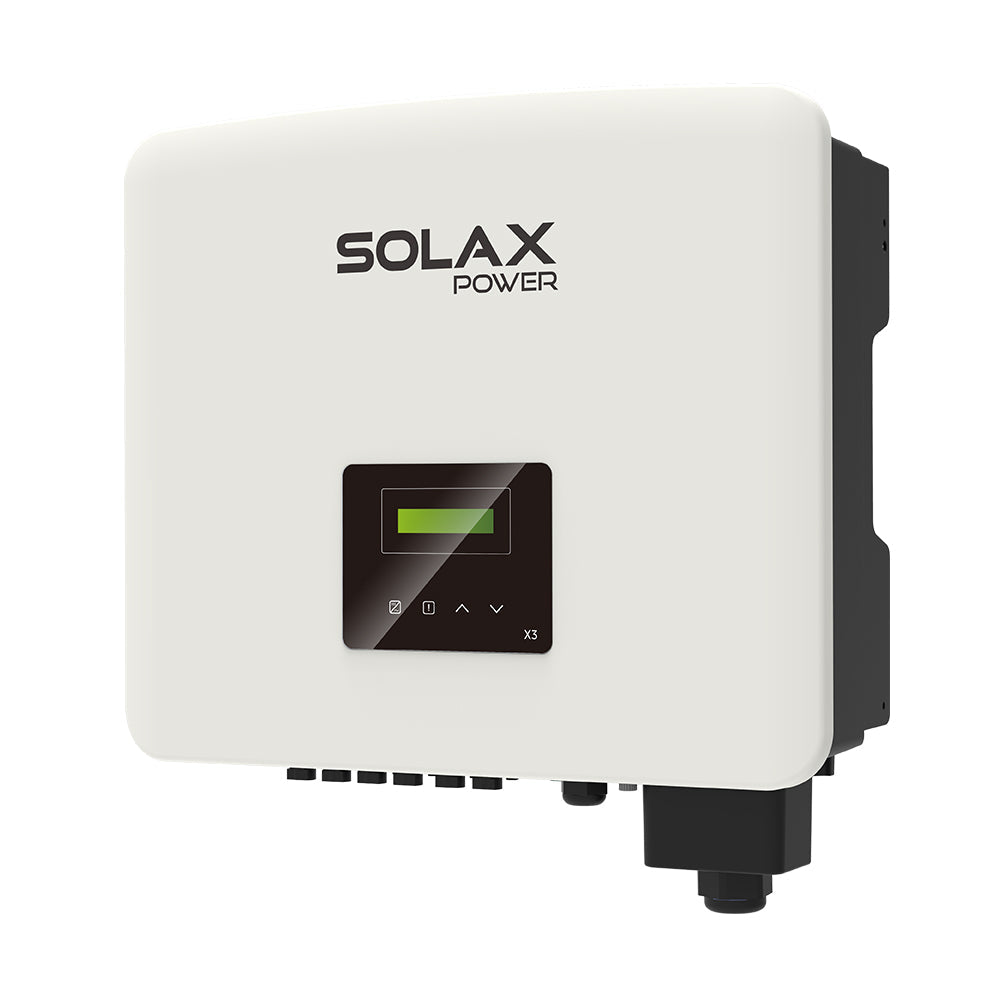

SolaX X3 Pro 15kW 3 Phase with DC Switch & WiFi (SX-231506)

The SolaX X3 Pro 15kW inverter is a high-performance, three-phase solar inverter engineered for maximum efficiency, reliability, and energy yield. Designed with a wide MPPT voltage range, it optimises energy harvesting and ensures seamless integration into residential and commercial solar systems. With a maximum efficiency of 98.5% and a maximum input voltage of 800V, this inverter delivers superior performance even in varying solar conditions.

Built for durability, the X3 Pro 15kW is IP66-rated, providing excellent protection against dust and water ingress, making it ideal for both indoor and outdoor installations. The fanless design allows for silent operation while maintaining effective heat dissipation. Integrated WiFi enables real-time system monitoring via the SolaX Cloud platform, providing users with remote access to performance data for smarter energy management. The optional ‘plug & play’ WiFi module ensures effortless system integration and monitoring.

Key Features:

  • Maximum efficiency of 98.5%
  • Dual MPPT for optimised energy harvesting
  • Wide MPPT voltage range for increased energy capture
  • IP66-rated for enhanced durability in all weather conditions
  • Remote monitoring via integrated WiFi
  • Low start-up voltage for better system performance
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-15K-G2
Max. PV Array Input Power 22,500 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 2
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 15,000 W
Max. AC Output Apparent Power 16,500 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.5%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 26 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 15kW Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
