SolaX - X3 Pro - 12kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 12kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,193.99
£1,193.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-231216

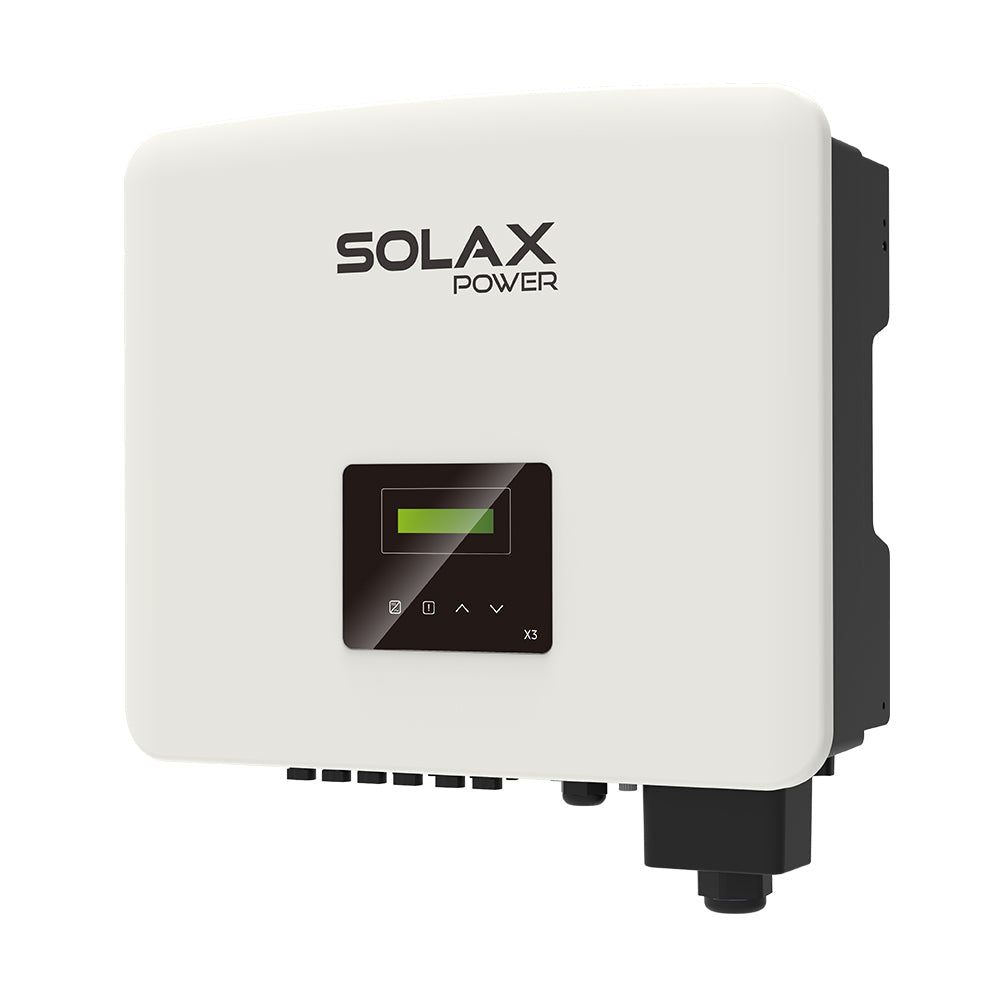

SolaX X3 Pro 12kW Three Phase Inverter (inc Wi-Fi) (SX-231216)

The SolaX X3 Pro 12kW inverter is designed for high-performance solar energy conversion, delivering reliability and efficiency for three-phase systems. With dual MPPTs and a wide MPPT voltage range, it ensures maximum energy harvesting in various conditions. This inverter features a maximum efficiency of 98.2%, making it an excellent choice for both residential and commercial applications.

Engineered for durability, the X3 Pro 12kW is IP66-rated, providing robust protection against dust and water, making it ideal for indoor and outdoor installations. With no internal fan, it operates quietly while maintaining superior heat dissipation. The integrated WiFi enables seamless remote monitoring through the SolaX Cloud platform, allowing users to track system performance in real-time. The optional ‘plug & play’ WiFi module ensures effortless system integration and monitoring.

Key Features:

  • Maximum efficiency of 98.2%
  • Dual MPPT for optimised solar tracking
  • Wide MPPT voltage range for improved energy harvesting
  • IP66-rated for enhanced durability in all weather conditions
  • Remote monitoring via integrated WiFi
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-12K-G2
Max. PV Array Input Power 18,000 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 2
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 12,000 W
Max. AC Output Apparent Power 13,200 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.2%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 24.5 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 12kW Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
