SolaX - X3 Pro - 10kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

SolaX - X3 Pro - 10kW Three Phase Inverter [DC Switch / Wifi] - (2 MPPT)

£1,109.99
£1,109.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-231006

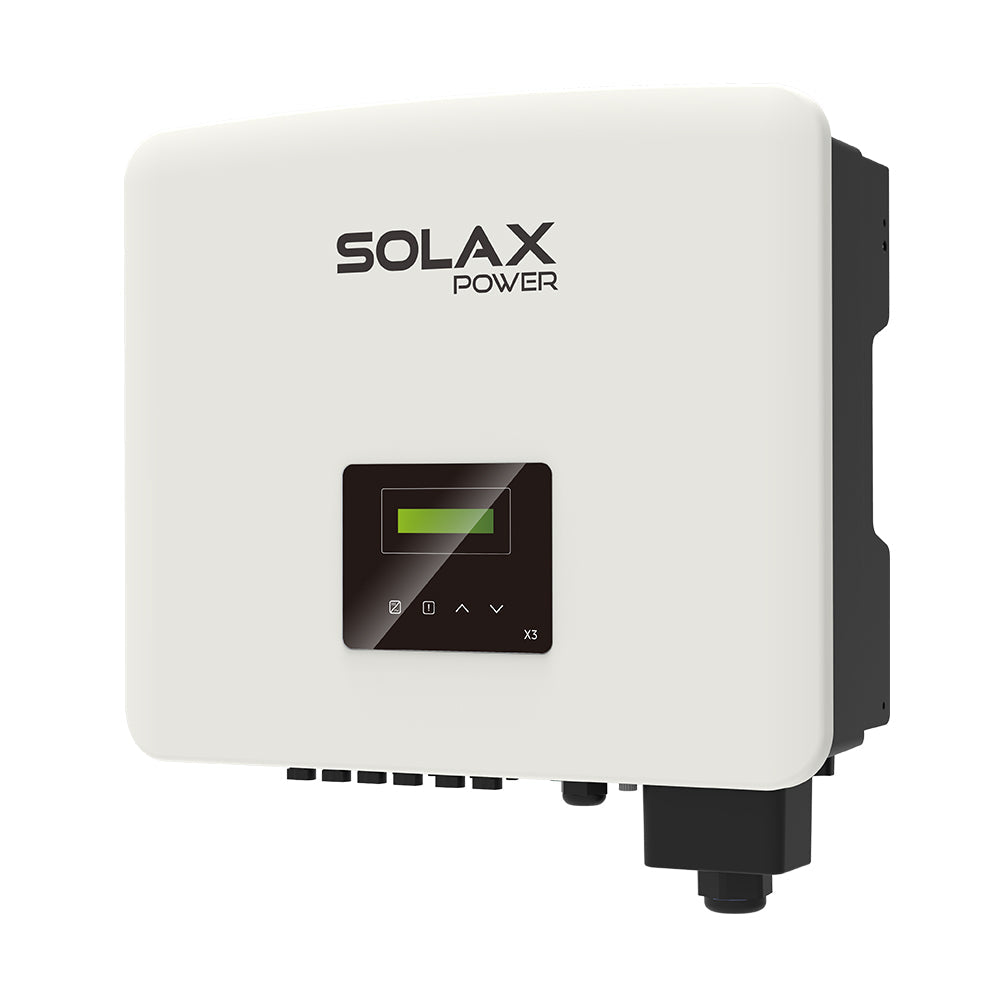

SolaX X3 Pro 10kW 3 Phase with DC Switch & WiFi (SX-231006)

The SolaX X3 Pro 10kW inverter is designed to deliver outstanding efficiency and reliability, making it an ideal choice for three-phase solar installations. Engineered for maximum energy conversion, it features dual MPPTs and an impressive maximum efficiency of 98.5%, ensuring optimal performance in a wide range of conditions. With a wide MPPT voltage range and a maximum input voltage of 800V, this inverter maximises energy harvesting for residential and commercial applications.

The X3 Pro 10kW is IP66-rated for durability and long-term performance in both indoor and outdoor installations. Designed without an internal fan, it offers quiet operation while maintaining superior heat dissipation. Integrated WiFi connectivity enables seamless remote monitoring, allowing users to track system performance in real time via the SolaX Cloud platform. The optional ‘plug & play’ WiFi module ensures effortless system integration and monitoring.

Key Features:

  • Maximum efficiency of 98.5%
  • Dual MPPT for optimised energy harvesting
  • Wide MPPT voltage range for maximum energy yield
  • IP66-rated for enhanced durability in all weather conditions
  • Remote monitoring via integrated WiFi
  • Low start-up voltage for increased energy capture
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X3-PRO-10.0K-G2
Max. PV Array Input Power 15,000 W
Max. PV Input Voltage 800 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 160 V – 800 V
Number of MPP Trackers 2
Max. PV Input Current 16 A per MPPT
Nominal AC Output Power 10,000 W
Max. AC Output Apparent Power 11,000 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.5%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 482 x 417 x 181 mm
Weight 24.5 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 Pro 10kW Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
