SolaX - X3 Mega - 60kW Three Phase Inverter with Screen [DC Switch / Wifi] - (6 MPPT)

SolaX - X3 Mega - 60kW Three Phase Inverter with Screen [DC Switch / Wifi] - (6 MPPT)

£1,999.99
£1,999.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-256006

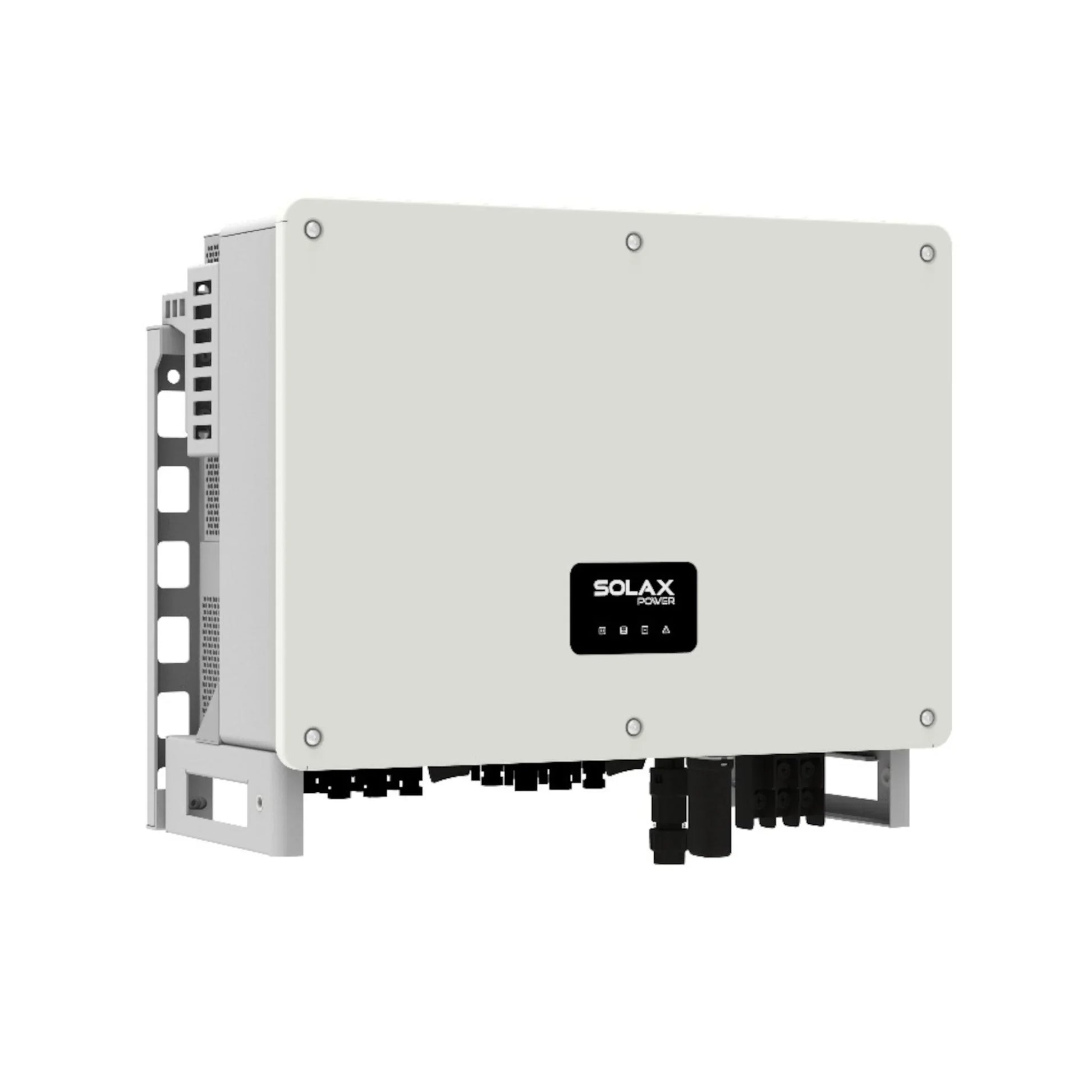

SolaX X3 MEGA 60kW-G2 3 Phase Inverter (6 MPPT) (SX-256006)

The SolaX X3 MEGA 60kW-G2 is a high-efficiency three-phase inverter designed to meet the demands of large commercial PV installations and ground-mounted solar arrays. Built with cutting-edge solar technology, it offers an ultra-wide MPPT voltage range, ensuring maximum energy harvesting. With a maximum input voltage of 1100V and a peak efficiency of 98.4%, this inverter is an excellent choice for high-powered solar applications.

Supporting up to 6 MPPTs with 2 strings per tracker, the X3 MEGA 60kW-G2 provides enhanced flexibility for complex solar configurations with multiple panel orientations. It features an IP66-rated enclosure for excellent durability and protection against dust and water ingress, making it ideal for outdoor installations. Designed with a fanless cooling system, it ensures silent operation while maintaining efficient heat dissipation. Integrated WiFi enables remote system monitoring via the SolaX Cloud platform, allowing users to track system performance in real time.

Key Features:

  • Maximum efficiency of 98.4%
  • Ultra-wide MPPT voltage range (180V – 1000V DC)
  • 6 MPPTs with up to 2 strings per tracker
  • High MPPT current of up to 32A
  • IP66-rated for indoor and outdoor installations
  • Online monitoring via integrated WiFi
  • Fanless design for silent operation

Technical Specifications:

Specification Details
Model X3-MGA-60K-G2
Max. PV Array Input Power 90,000 W
Max. PV Input Voltage 1100 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 180 V – 1000 V
Number of MPP Trackers 6
Max. PV Input Current 32 A per MPPT
Nominal AC Output Power 60,000 W
Max. AC Output Apparent Power 66,000 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.4%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 630 x 521 x 286 mm
Weight 45 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 MEGA 60kW-G2 Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
