SolaX - X3 Mega - 50kW Three Phase Inverter with Screen [DC Switch / Wifi] - (5 MPPT)

SolaX - X3 Mega - 50kW Three Phase Inverter with Screen [DC Switch / Wifi] - (5 MPPT)

£1,834.99
£1,834.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-255006

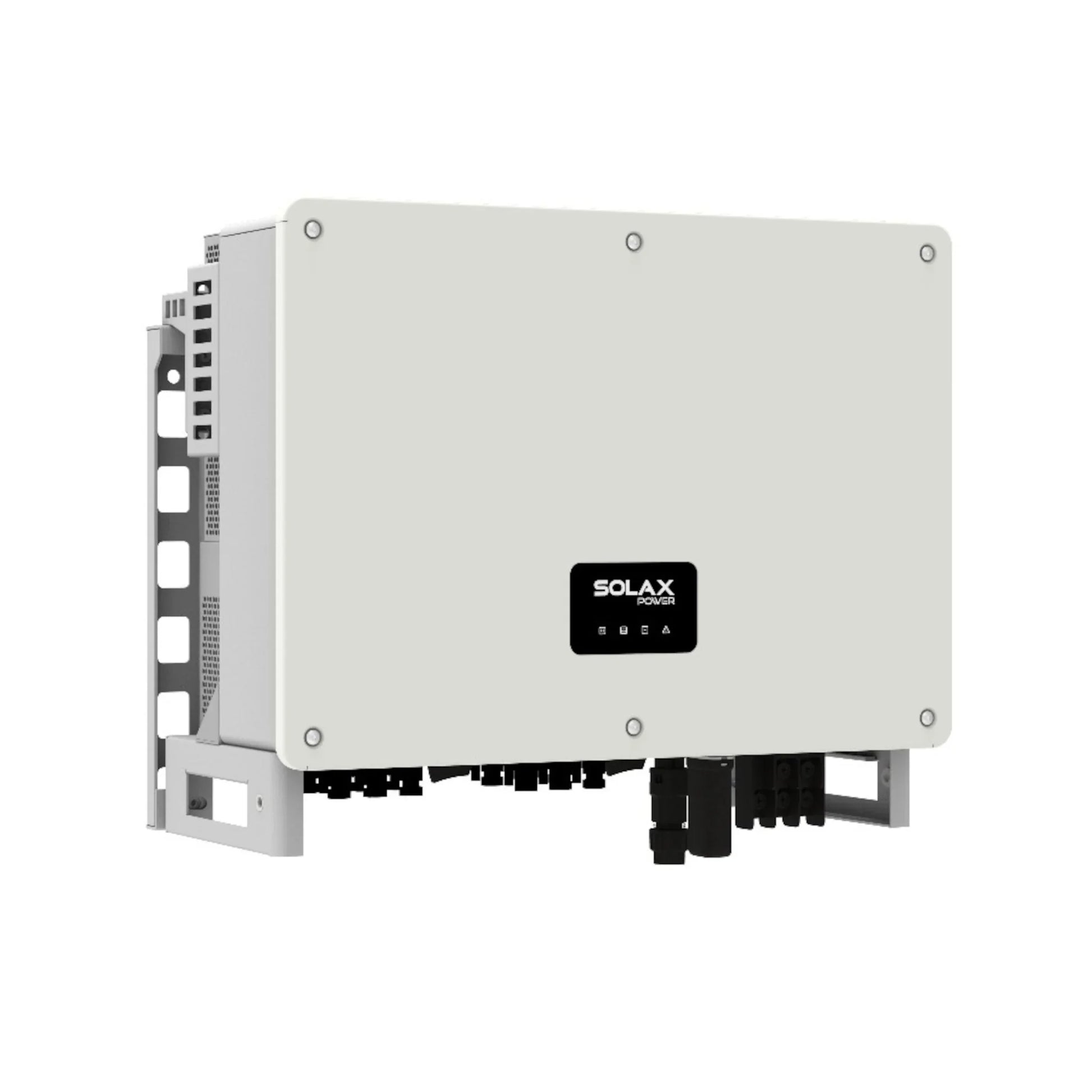

SolaX X3 MEGA 50kW-G2 3 Phase Inverter (5 MPPT) (SX-255006)

The SolaX X3 MEGA 50kW-G2 is a high-performance three-phase inverter designed for commercial PV installations and ground-mounted PV arrays. Built with the latest solar technology, it delivers exceptional energy efficiency with an ultra-wide MPPT voltage range, ensuring maximum solar energy harvesting. With a maximum input voltage of 1100V and a peak efficiency of 98.4%, this inverter is an excellent choice for large-scale solar applications.

Supporting up to 5 MPPTs and 2 strings per tracker, the X3 MEGA 50kW-G2 provides advanced system flexibility, making it ideal for complex solar configurations with multiple panel orientations. Its IP66-rated enclosure ensures robust protection against dust and water ingress, allowing for reliable outdoor installation. Designed with a fanless cooling system, it operates quietly while maintaining optimal heat dissipation. Integrated WiFi enables remote monitoring via the SolaX Cloud platform, allowing for seamless energy management.

Key Features:

  • Maximum efficiency of 98.4%
  • Ultra-wide MPPT voltage range (180V – 1000V DC)
  • 5 MPPTs with up to 2 strings per tracker
  • High MPPT current of up to 32A
  • IP66-rated for indoor and outdoor installations
  • Online monitoring via integrated WiFi
  • Fanless design for silent operation

Technical Specifications:

Specification Details
Model X3-MGA-50K-G2
Max. PV Array Input Power 75,000 W
Max. PV Input Voltage 1100 V
Start-up Voltage 180 V
MPP Tracker Voltage Range 180 V – 1000 V
Number of MPP Trackers 5
Max. PV Input Current 32 A per MPPT
Nominal AC Output Power 50,000 W
Max. AC Output Apparent Power 55,000 VA
Nominal AC Voltage/Range 380/400 V; 310 V – 480 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98.4%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 630 x 521 x 286 mm
Weight 44 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display LED Indicators & Mobile App

Download the datasheet for the SolaX X3 MEGA 50kW-G2 Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
