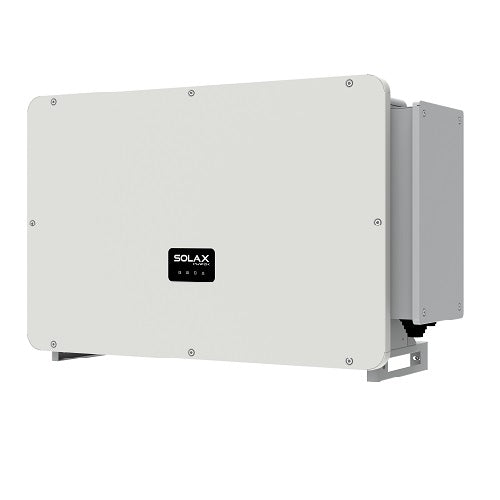

SolaX X3 FORTH 100kW 3 Phase Inverter (SX-261006)

The SolaX X3 FORTH 100kW inverter is a next-generation commercial and rooftop-scale string inverter, engineered for superior reliability, efficiency, and performance. Designed to maximise energy harvesting, it features an ultra-wide MPPT voltage range and supports a maximum input voltage of 1100V. With an industry-leading MPPT efficiency of 99.9%, this inverter ensures optimal energy conversion for large-scale commercial solar installations.

Equipped with 9 MPPTs and a high 32A input current per tracker, the X3 FORTH 100kW provides flexibility for complex system configurations and multiple panel orientations. With a 150% oversized PV input capacity, it supports large-scale solar systems, allowing for up to 9MW power stations with 60 parallel systems through the SolaX Datahub 1000. Additionally, the inverter offers advanced safety features, including AFCI protection, AC/DC surge protection, and an IP66-rated enclosure for durability in challenging environmental conditions.

Key Features:

• 9 MPPTs with a 99.9% MPPT efficiency
• Ultra-wide MPPT voltage range for enhanced energy capture
• IP66-rated for indoor and outdoor installations
• AFCI protection for improved system safety
• Maximum 32A MPPT input current
• AC and DC surge protection
• 150% oversized PV input for system scalability
• Compatible with SolaX Datahub 1000 for multi-inverter parallel integration

Technical Specifications:

Download the datasheet for the SolaX X3 FORTH 100kW Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
