SolaX - X1 Boost G4 5000w Single Phase Inverter (2 MPPT)

SolaX - X1 Boost G4 5000w Single Phase Inverter (2 MPPT)

£484.99
£484.99
Sale Sold out
Tax included. Shipping calculated at checkout.

SX-125016

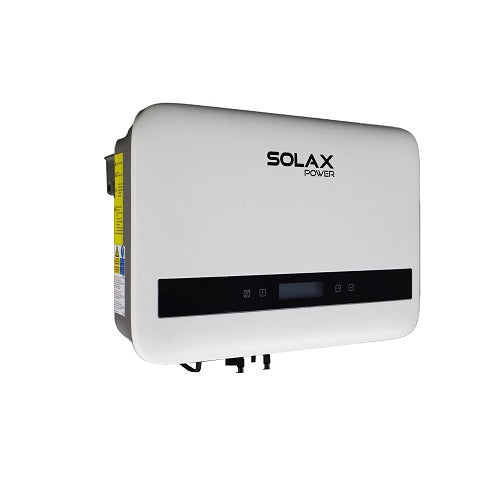

SolaX X1 Boost G4 5000W 2MPPT with DC Switch & WiFi (SX-125016)

Experience unparalleled performance with the compact and lightweight SolaX X1 Boost G4 5000W Inverter. Designed for maximum efficiency, this advanced inverter features dual MPPTs for superior solar tracking and optimised energy conversion. Its wide power range, enhanced intelligence, and seamless integration with home EV chargers, heat pump solutions, and microgrids make it an ideal choice for residential and small commercial solar systems.

Equipped with Global MPP scan and I-V curve diagnosis, this inverter enhances system reliability by identifying component issues early. With real-time monitoring, remote management capabilities, and an IP66-rated weatherproof enclosure, the X1 Boost G4 5000W delivers long-lasting performance and efficiency, ensuring optimal energy yield in all conditions.

Key Features:

  • Maximum efficiency of 98%
  • Dual MPPT for optimised energy harvesting
  • Low start-up voltage for increased energy capture
  • Compact and lightweight design
  • IP66 rated for indoor and outdoor use
  • 10-year warranty for long-term reliability

Technical Specifications:

Specification Details
Model X1-5.0T-D(L)-G4
Max. PV Array Input Power 10,000 W
Max. PV Input Voltage 600 V
Start-up Voltage 50 V
MPP Tracker Voltage Range 40 V – 560 V
Number of MPP Trackers 2
Max. PV Input Current 12.5 A per MPPT
Nominal AC Output Power 5000 W
Max. AC Output Apparent Power 5300 VA
Nominal AC Voltage/Range 220/230/240 V; 180 V – 280 V
Nominal AC Frequency/Range 50/60 Hz; ±5 Hz
Power Factor Range 0.8 leading – 0.8 lagging
Max. Efficiency 98%
Ingress Protection IP66
Operating Temperature Range -25°C to 60°C
Dimensions (W x H x D) 404 x 274 x 146 mm
Weight 11 kg
Communication Interfaces USB/RS485/DRM; Optional: Meter/CT
Display 2 x LED + LCD (16 x 2) / APP

Download the datasheet for the SolaX X1 Boost G4 5000W Inverter here.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
