Solax
SolaX - X1 Boost G4 3600w Single Phase Inverter (2 MPPT)
SolaX - X1 Boost G4 3600w Single Phase Inverter (2 MPPT)
Couldn't load pickup availability
SKU:SX-123616

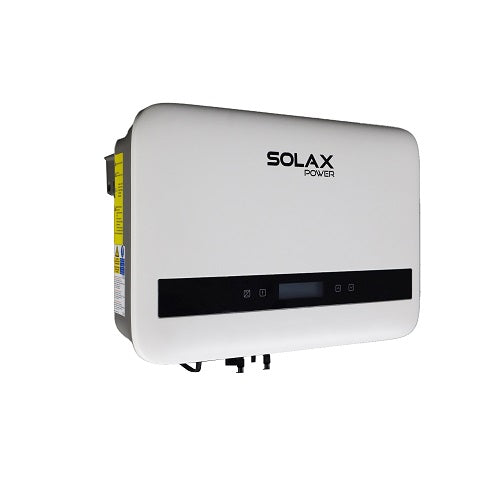

SolaX X1 Boost G4 3600W 2MPPT with DC Switch & WiFi (SX-123616)
The SolaX vision is to be a global leader in the development, production, and distribution of solar inverters. The SolaX X1 Boost 3600W inverter is designed to maximise solar energy conversion with dual MPPTs, ensuring optimal tracking and performance. Engineered with a wide MPPT voltage range, it allows for more energy harvesting, improving efficiency and output. The robust design and advanced technology make this inverter ideal for both residential and small commercial applications.
The optional SolaX Pocket WiFi module enables real-time monitoring, providing users with remote access to system performance data from anywhere in the world. Simply plug in the WiFi module for seamless connectivity and energy management. With an IP66-rated weatherproof casing, this inverter is built for long-lasting performance in both indoor and outdoor installations.
Key Features:
- Maximum efficiency of 98%
- Dual MPPT for optimised solar tracking
- Low start-up voltage for increased energy capture
- Compact, lightweight, and easy to install
- IP66 rated for both indoor and outdoor use
- Up to 10 years manufacturer’s warranty
Technical Specifications:
| Specification | Details |
|---|---|
| Model | X1-3.6-T-D(L)-G4 |
| Max. PV Array Input Power | 7,200 Wp |
| Max. PV Input Voltage | 600 V |
| Start-up Voltage | 50 V |
| MPP Tracker Voltage Range | 40 V – 560 V |
| Number of MPP Trackers | 2 |
| Max. PV Input Current | 12.5 A per MPPT |
| Nominal AC Output Power | 3680 W |
| Max. AC Output Apparent Power | 4000 VA |
| Nominal AC Voltage/Range | 220/230/240 V; 180 V – 280 V |
| Nominal AC Frequency/Range | 50/60 Hz; ±5 Hz |
| Power Factor Range | 0.8 leading – 0.8 lagging |
| Max. Efficiency | 98% |
| Ingress Protection | IP66 |
| Operating Temperature Range | -25°C to 60°C |
| Dimensions (W x H x D) | 404 x 274 x 146 mm |
| Weight | 11 kg |
| Communication Interfaces | USB/RS485/DRM; Optional: Meter/CT |
| Display | 2 x LED + LCD (16 x 2) / APP |
Download the datasheet for the SolaX X1 Boost 3600W Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
