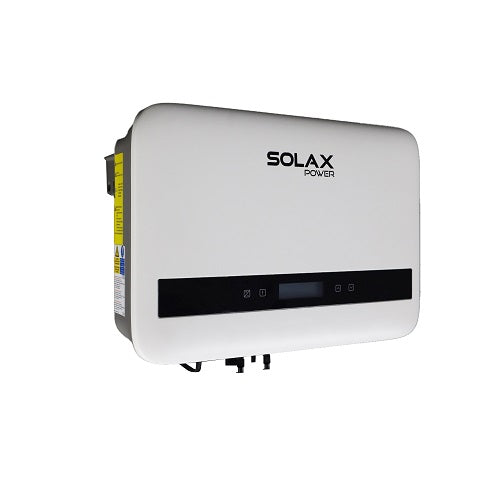

SolaX - X1 Boost G4 2500w Single Phase Inverter (2 MPPT)
SolaX - X1 Boost G4 2500w Single Phase Inverter (2 MPPT)
Couldn't load pickup availability
SKU:SX-122516
SolaX X1 Boost G4 2500W Single Phase Inverter (AFCI / DC Switch / WiFi) SX-122516
Experience unparalleled performance with the compact and lightweight SolaX X1 Boost 2500W Inverter. Designed to enhance solar energy efficiency, this advanced inverter features dual MPPTs, allowing for superior energy harvesting and optimisation. Its wide power range, enhanced intelligence, and compatibility with home EV chargers, heat pump solutions, and microgrids set it apart. Equipped with real-time monitoring capabilities, the X1 Boost ensures seamless configuration for smarter energy management.
With Global MPP scan and I-V curve diagnosis, this inverter provides comprehensive component detection, improving system reliability and efficiency. The X1 Boost is engineered to meet the demands of modern solar installations, offering high conversion efficiency, robust protection, and long-term reliability. Whether for residential or small commercial applications, this inverter delivers unmatched performance and convenience for a smarter, more efficient lifestyle.
Key Features:
- Maximum efficiency of 98%
- Dual MPPT for optimal solar tracking
- Low start-up voltage for improved performance
- Compact, lightweight, and easy to install
- IP66 rated for indoor and outdoor use
- 10-year warranty for long-term reliability
Technical Specifications:
| Specification | Details |
|---|---|
| Model | X1-2.5-T-D(L)-G4 |
| Max. PV Array Input Power | 6,000 Wp |
| Max. PV Input Voltage | 600 V |
| Start-up Voltage | 50 V |
| MPP Tracker Voltage Range | 40 V – 560 V |
| Number of MPP Trackers | 2 |
| Max. PV Input Current | 12.5 A per MPPT |
| Nominal AC Output Power | 2500 W |
| Max. AC Output Apparent Power | 2750 VA |
| Nominal AC Voltage/Range | 220/230/240 V; 180 V – 280 V |
| Nominal AC Frequency/Range | 50/60 Hz; ±5 Hz |
| Power Factor Range | 0.8 leading – 0.8 lagging |
| Max. Efficiency | 98% |
| Ingress Protection | IP66 |
| Operating Temperature Range | -25°C to 60°C |
| Dimensions (W x H x D) | 404 x 274 x 146 mm |
| Weight | 11 kg |
| Communication Interfaces | USB/RS485/DRM; Optional: Meter/CT |
| Display | 2 x LED + LCD (16 x 2) / APP |
Download the datasheet for the SolaX X1 Boost 2500W Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
