SolaX HV Single Phase Hybrid Inverter 3.7kW (WiFi)
SolaX HV Single Phase Hybrid Inverter 3.7kW (WiFi)
Couldn't load pickup availability
SKU:SX-303711

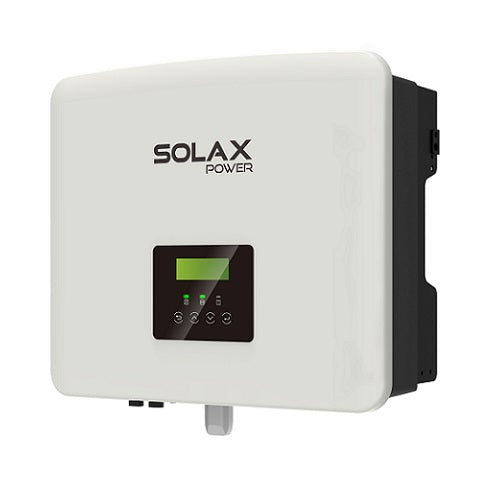

SolaX X1-Hybrid Inverter 3.7kW (WiFi) (SX-303711)
The SolaX X1-Hybrid 3.7kW Inverter is part of SolaX’s third-generation hybrid inverter range, offering a market-leading energy storage solution for residential solar systems. Designed for seamless battery integration, it is compatible with leading lithium-ion battery technologies, enabling homeowners to maximise self-consumption and reduce electricity bills.
With a maximum efficiency of 97.6%, fast charging, and high-power discharge capability, the X1-Hybrid ensures optimal energy conversion and usage. The inverter supports remote monitoring, control, and firmware upgrades via the SolaX Cloud platform, allowing for intelligent system management.
Built for durability, the X1-Hybrid 3.7kW is IP65-rated, making it suitable for both indoor and outdoor installations. Its advanced thermal management system ensures reliable operation even in extreme cold conditions. With integrated WiFi and an integrated DC switch, this inverter is both safe and convenient to install and monitor.
Key Features:
- High Efficiency – Maximum efficiency of 97.6% for superior energy conversion
- Fast Charging & High-Power Discharge – Ensures efficient battery performance
- Remote Control & Firmware Upgrades – Smart monitoring via the SolaX Cloud
- Operates in Extreme Cold – Reliable performance in challenging weather conditions
- IP65 Rated – Designed for both indoor and outdoor use
- Integrated WiFi – Enables seamless system monitoring and control
- Integrated DC Switch – Enhances safety and ease of installation
Technical Specifications:
Specification | Details |
---|---|
Brand | SolaX |
Model | X1-Hybrid 3.7kW |
SKU | SX-303711 |
Item Code | X1-HYBRID-3.7-D-G4 |
Inverter Type | Hybrid Inverter |
Nominal AC Output Power | 3,680 W |
Max Input DC Power | 5,500 W |
Battery Type | LFP (LiFePO4) |
Number of MPP Trackers | 2 |
Efficiency | 97.6% Max |
Phase | Single Phase |
Integrated WiFi | Yes |
Integrated DC Switch | Yes |
IP Rating | IP65 |
Dimensions (W x H x D) | 482 x 417 x 181 mm |
Weight | 24 kg |
Download the datasheet for the SolaX X1-Hybrid 3.7kW Inverter here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
