Renusol ConSole+ Ballasted Flat Roof & Ground Mount Solar Panel Mounting System

The Renusol ConSole+ is a reliable and cost-effective ballasted mounting solution for installing a single framed solar panel on flat roofs or ground-mounted solar systems. Designed to eliminate the need for roof penetrations, it is ideal for domestic, commercial and off-grid solar installations where a secure, non-invasive mounting system is required.

The ConSole+ is commonly used as a ground mount solar panel bracket where a simple, ballast-based installation is preferred. It is equally suitable for garden solar arrays, off-grid cabins, agricultural buildings and commercial ground-mounted PV systems.

The system positions the solar panel at an optimised 15° angle to maximise energy generation while maintaining excellent stability. Suitable for flat roofs with a pitch of up to 5°, the ConSole+ is secured using ballast such as gravel, paving slabs, concrete blocks or similar materials, with the required ballast weight depending on the installation location and wind loading.

Manufactured from durable UV-resistant materials and corrosion-resistant stainless steel fixings, the Renusol ConSole+ is built for long-term outdoor use and offers a straightforward installation process.

Key Features

• Suitable for flat roof and ground-mounted solar panel installations
• Ballasted mounting system – no roof penetrations required
• 15° module tilt for improved solar performance
• Compatible with most framed solar panels
• Suitable for roof pitches up to 5°
• Can be ballasted using gravel, paving slabs, bricks or concrete blocks
• Ideal for domestic, commercial and off-grid solar systems
• Quick and simple installation
• Corrosion-resistant stainless steel fixings included

Compatible Solar Panel Sizes

Please check your solar panel datasheet to ensure the mounting hole spacing matches the dimensions above before ordering.

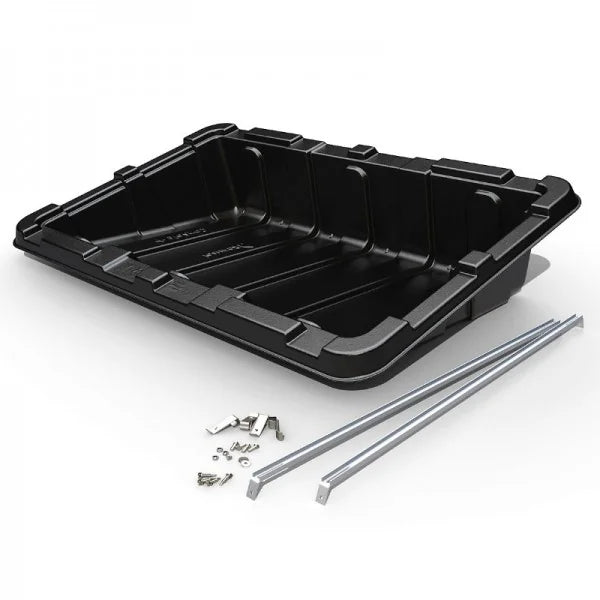

What's Included

• 1 × Renusol ConSole+
• 2 × ConSole U-Profiles (1035 mm)
• 4 × DIN933 M6 × 20 A2-70 Hexagon Screws
• 4 × DIN9021 6.4 mm A2 Washers
• 4 × DIN985 M6 A2 Self-locking Hex Nuts
• 4 × ConSole Clips
• 4 × DIN7504 ST5.5 × 25 A2 Self-drilling Hex Screws

Installation Information

The Renusol ConSole+ is designed to be secured using ballast rather than mechanical roof fixings. Suitable ballast materials include gravel, paving slabs, bricks, concrete blocks or similar heavy materials. The amount of ballast required will vary depending on building height, roof location, wind loading and local environmental conditions.

For safe installation, we strongly recommend using the Renusol PV Configurator and referring to the latest Renusol installation guidance to calculate the correct ballast requirements before installation.

Technical Specifications

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
