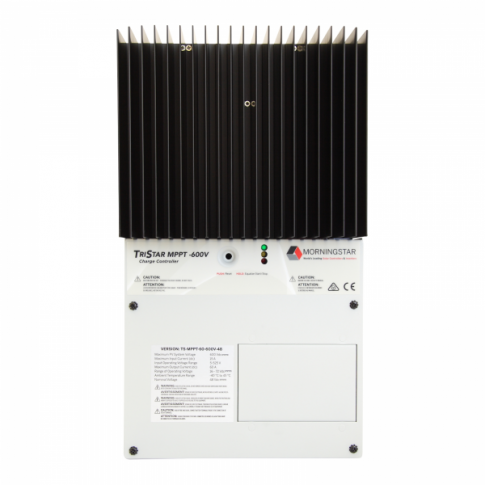

Morningstar TriStar 60A MPPT 600V charge controller for off-grid solar applications

Controller specifications:

• Nominal system voltage: 48V
• Maximum output current: 60A
• Solar input voltage up to 600V
• 3 pairs of terminals (input, battery, output), plus ports for computer connectivity and an optional remote meter
• Multi-colour LEDs to indicate charging and battery status
• Temperature sensor for automatic compensation (-5mV/C/cell) operating between -30°C and +80°C
• Battery operating voltage range: 16 - 72V
• Self-consumption: < 3.5W
• Working temperature: -40°C to +45°C
• Humidity: 100% non-condensing
• Enclosure: IP20 (indoor and vented)
• Size: 392 x 221 x 149 mm
• Weight: 8.98 kg
• Mounting holes for ease of installation

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
