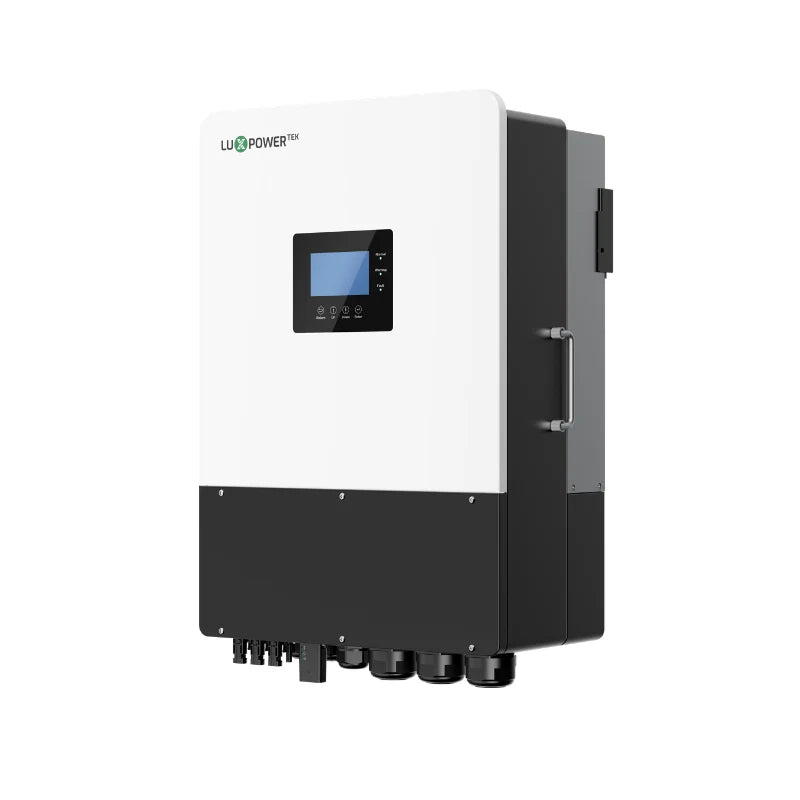

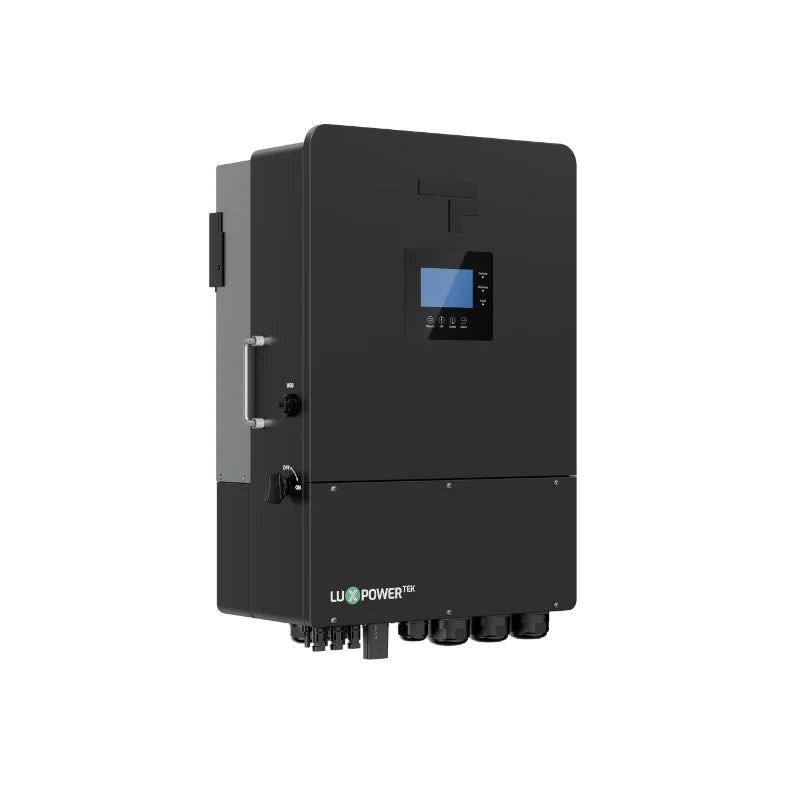

LuxpowerTek TriP2-LB-3P 20K (Three Phase Hybrid Inverter)

The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter for residential, commercial and light industrial solar PV and battery storage systems, combining up to 30kW of PV input, three independent MPPTs, 48V low-voltage battery integration and dedicated generator support. With independent phase export control, unbalanced load capability and support for up to 10 units in parallel, it provides a flexible platform for demanding three-phase energy systems where high solar input, battery storage and backup power need to work together.

Key Features

• Three-phase hybrid inverter platform
• Up to 20kW maximum AC output/export power
• Up to 30,000W maximum solar PV input
• Three independent MPPT trackers
• 48V low-voltage battery architecture
• 40-60V battery operating range
• Up to 250A maximum battery charge and discharge current
• Up to 12kW maximum battery power, depending on battery voltage
• Supports three-phase unbalanced loads
• Independent grid export control on each phase
• Dedicated GEN port with generator, smart load and AC coupling functionality
• Eight configurable time-of-use charge and discharge periods
• Supports up to 10 units operating in parallel
• IP66-rated enclosure
• Touch colour screen interface
• RS485, Wi-Fi and CAN communications
• 10-year warranty

High-Capacity Three-Phase Energy Management

The TriP2-LB-3P 20K is built for installations where a standard single-phase hybrid inverter cannot provide the required power or system flexibility. Its three-phase output architecture supports demanding residential properties, commercial premises and light industrial applications with mixed electrical loads across multiple phases.

Support for unbalanced three-phase loads allows the inverter to respond more effectively where electricity consumption is not evenly distributed across each phase. Independent export control also allows grid export to be managed separately by phase, providing greater control in complex commercial and three-phase installations.

48V Low-Voltage Battery Integration

The inverter uses a 48V low-voltage battery architecture with a 40-60V operating range, providing an alternative to high-voltage battery systems while still supporting substantial energy throughput. Maximum battery charge and discharge current is up to 250A, with battery power of up to 12kW depending on the connected battery voltage.

Intelligent lithium battery charging includes BMS self-adaptation, helping the inverter and compatible battery management system work together to manage charging and discharging appropriately.

Battery Specifications

Solar PV Specifications

Three-Phase AC Specifications

Generator and Smart Port

A dedicated GEN port provides additional flexibility for backup and hybrid power system design. It supports automatic generator start and stop control, smart load management and AC coupling functionality, allowing the inverter to manage supplementary generation alongside solar PV and battery storage.

Time-of-Use and Export Control

Eight configurable time-of-use charging and discharging periods allow the system to manage battery usage around changing electricity tariffs and demand patterns. This can help increase solar self-consumption, charge batteries during lower-cost periods and reduce grid imports during higher-rate periods.

Independent grid export control on each phase provides additional flexibility for three-phase properties, particularly where phase loads vary significantly or export limits need to be managed carefully.

Physical and Installation Specifications

Protection and Compliance

• PV reverse polarity protection
• Over-current protection
• Over-voltage protection
• Anti-islanding protection
• AC short-circuit protection
• Leakage current protection
• Grid monitoring
• Integrated DC switch
• Type III DC surge protection
• Type III AC surge protection
• Certified to EN 62109, EN 61000, IEC 61683, EN 50549-10, G99, G100, IEC 62116, IEC 61727 and additional regional standards

Typical Applications

• Large residential three-phase solar systems
• Commercial solar PV and battery storage installations
• Light industrial energy storage systems
• 48V low-voltage commercial battery systems
• Three-phase backup power systems
• Solar and generator hybrid installations
• Properties with unbalanced three-phase loads
• Time-of-use tariff optimisation
• High solar self-consumption systems
• Large rooftop solar arrays with multiple orientations
• Scalable commercial renewable energy systems

Why Choose This Product?

The TriP2-LB-3P 20K brings together high three-phase output capability, up to 30kW of solar PV input and low-voltage battery integration in a single hybrid inverter platform. Three independent MPPTs provide flexibility for complex solar array layouts, while unbalanced load support and independent phase export control make it particularly suitable for properties with varied three-phase demand.

Generator integration, eight programmable time-of-use periods and support for up to 10 parallel units give installers considerable flexibility when building larger residential, commercial or light industrial energy storage systems. The IP66 enclosure and 10-year warranty provide additional confidence for long-term installations.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
