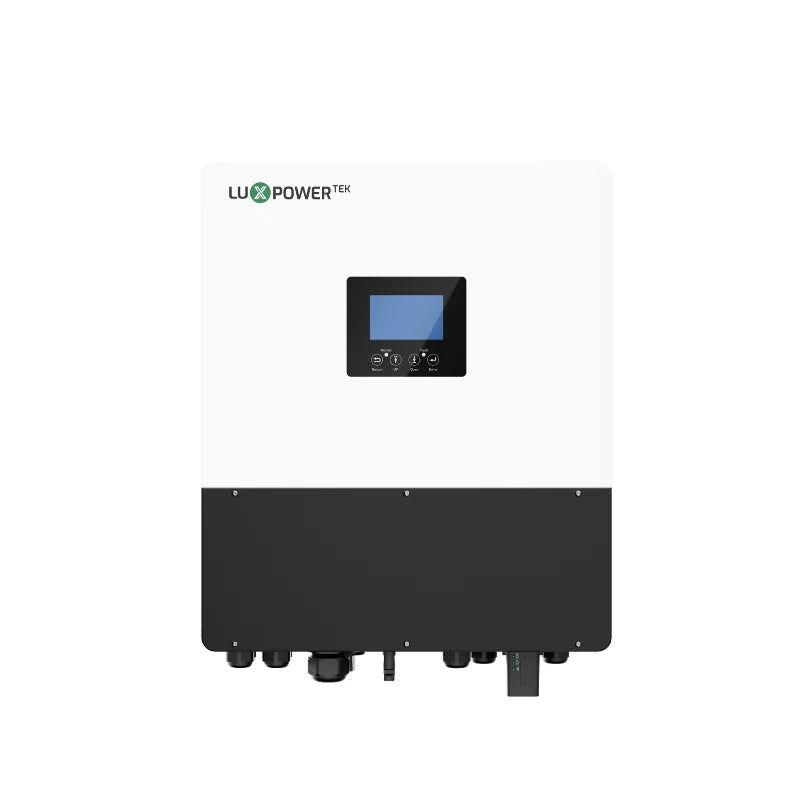

LuxpowerTek GEN2-LB-EU 6K (Single Phase Hybrid)

The GEN2-LB-EU 6K is a 6kW single-phase hybrid inverter for residential solar PV and battery storage systems, built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems. Combining up to 9.6kW of solar PV input, dual independent MPPTs, powerful battery charging and on-grid or off-grid operation, it provides a flexible platform for UK homes looking to maximise solar self-consumption, use time-of-use electricity tariffs and increase energy independence.

Key Features

• 6kW rated single-phase AC output
• Up to 9,600W maximum solar PV input
• Two independent MPPT solar inputs
• 48V nominal battery system with 40-60V operating range
• Up to 125A maximum battery charge current
• Up to 140A maximum battery discharge current
• 6,000W maximum battery charge and discharge power
• Suitable for on-grid and off-grid solar systems
• Dedicated generator, AC coupling and smart load ports
• Time-of-use tariff optimisation support
• Supports up to 10 units operating in parallel
• 24/7 remote monitoring support
• IP66-rated enclosure
• RS485, Wi-Fi and CAN communications
• Integrated DC switch
• 10-year warranty

High-Performance Hybrid Solar and Battery Storage

The GEN2-LB-EU 6K combines solar generation, battery storage and grid connectivity within a single hybrid inverter. Its 48V architecture is configured for integration with Fogstar 51.2V battery systems, allowing surplus solar generation to be stored and used when household demand increases or solar production falls.

With up to 125A battery charging and 140A discharge current, the inverter is well suited to larger residential battery storage systems where higher charge and discharge rates are required. Maximum battery charge and discharge power is 6,000W.

The inverter can also charge batteries from the grid, making it suitable for homes using off-peak and time-of-use electricity tariffs. Lower-cost grid electricity can be stored for later use during more expensive periods, helping to reduce peak-rate imports and improve the overall economics of a home battery storage system.

9.6kW Solar PV Input with Dual MPPTs

The GEN2-LB-EU 6K supports up to 9,600W of connected solar PV capacity, providing substantial PV input capability for a 6kW hybrid inverter. Two independent MPPT trackers allow separate solar strings to be managed independently, providing greater flexibility for properties with different roof orientations or array layouts.

Each MPPT supports up to 18A input current and 32A short-circuit current, with a 150-425V MPPT operating range and 530V maximum PV input voltage. MPPT efficiency of up to 99.9% helps maximise available solar generation as conditions change throughout the day.

Battery Specifications

Solar PV Specifications

AC Specifications

Physical and Installation Specifications

Flexible System Integration

Dedicated generator, AC coupling and smart load ports provide additional flexibility when configuring the energy system. This allows the inverter to work within more advanced installations involving supplementary generation, controlled loads or existing AC-coupled solar equipment.

Support for up to 10 units in parallel also provides a clear expansion route for systems where greater inverter capacity may be required in the future.

Protection and Compliance

• PV reverse polarity protection
• Over-current protection
• Over-voltage protection
• Anti-islanding protection
• AC short-circuit protection
• Leakage current protection
• Ground fault monitoring
• Grid monitoring
• Integrated DC switch
• Type III AC and DC surge protection
• Certified to G98, G99, EN 62109, EN 61000, IEC 62116, IEC 61727, IEC 61683, CEI 0-21 and related standards

Typical Applications

• Residential solar PV and battery storage systems
• Fogstar 48V and 51.2V battery installations
• Higher-capacity home solar systems
• On-grid solar battery systems
• Off-grid solar power systems
• Time-of-use electricity tariff optimisation
• Solar self-consumption and load shifting
• Home backup power systems
• Properties with multiple solar array orientations
• Expandable renewable energy and battery storage installations

Why Choose This Product?

The GEN2-LB-EU 6K provides considerably more power and PV capacity than smaller residential hybrid inverters, with a 6kW AC output, up to 9.6kW of solar PV input and high battery charge and discharge capability. Dual independent MPPTs provide flexibility for different roof orientations, while dedicated generator, AC coupling and smart load ports allow more advanced energy systems to be configured around the property.

Fogstar battery integration, IP66 protection, remote monitoring, parallel expansion and a 10-year warranty make it a strong foundation for a high-capacity residential solar battery storage system built for long-term use.

For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
