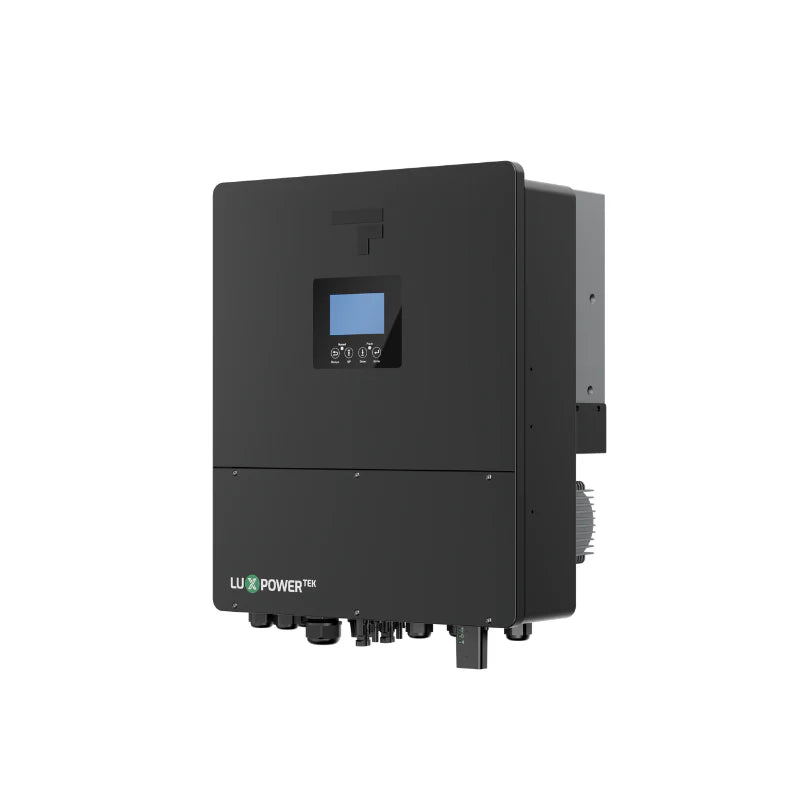

LuxpowerTek GEN2-LB-EU 3.6K (Single Phase Hybrid)
LuxpowerTek GEN2-LB-EU 3.6K (Single Phase Hybrid)
Couldn't load pickup availability
SKU:INV-LUX-3.6KW-SPH-BLK
The Fogstar GEN2-LB-EU 3.6K is a 3.6kW single-phase hybrid inverter for residential solar PV and battery storage systems, combining dual MPPT solar inputs, 48V battery compatibility and on-grid or off-grid operation in one compact unit. Built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems, it provides flexible energy management, time-of-use tariff optimisation and scalable battery storage for modern UK homes.
Key Features
- 3.6kW rated single-phase AC output
- Up to 7,000W maximum solar PV input
- Two independent MPPT solar inputs
- 48V nominal battery system with 40-60V operating range
- Up to 80A maximum battery charge and discharge current
- 3,600W maximum battery charge and discharge power
- Suitable for both on-grid and off-grid solar systems
- Dedicated generator, AC coupling and smart load ports
- Time-of-use tariff optimisation support
- Supports up to 10 units operating in parallel
- IP66-rated enclosure
- RS485, Wi-Fi and CAN communications
- Integrated DC switch
- 10-year warranty
Hybrid Solar and Battery Storage
The GEN2-LB-EU 3.6K combines solar generation, battery storage and grid connection within a single hybrid inverter. Its 48V battery architecture is configured for integration with Fogstar 51.2V battery systems, allowing surplus solar energy generated during the day to be stored for use when household demand increases or solar production falls.
The inverter can also charge batteries from the grid, making it suitable for homes using off-peak and time-of-use electricity tariffs. Energy can be stored during lower-cost periods and used when grid electricity is more expensive, helping to reduce peak-rate imports and make better use of the battery system.
High-Capacity Dual MPPT Solar Input
Two independent MPPT trackers provide greater flexibility when configuring a residential solar array. Each MPPT supports up to 18A input current and operates across a 150-425V MPPT voltage range, with a maximum PV input voltage of 530V.
With support for up to 7,000W of connected PV capacity, the inverter can accommodate substantial solar generation relative to its 3.6kW AC output. MPPT efficiency of up to 99.9% helps maximise the energy harvested from the solar array as generation conditions change throughout the day.
Battery Specifications
| Specification | Value |
|---|---|
| Nominal Battery Voltage | 48V |
| Battery Operating Range | 40-60V |
| Maximum Charge/Discharge Current | 80A |
| Maximum Charge/Discharge Power | 3,600W |
| Maximum Charge/Discharge Efficiency | 94.5% |
| Battery Communication | CAN |
| Force Wake-Up | Supported from PV |
Solar PV Specifications
| Specification | Value |
|---|---|
| Maximum PV Input Power | 7,000W |
| Number of MPPTs | 2 independent MPPTs |
| MPPT Configuration | 1:1 |
| MPPT Voltage Range | 150-425V |
| Maximum PV Input Voltage | 530V |
| Start-Up Voltage | 100V |
| Maximum PV Input Current | 18A per MPPT |
| Maximum PV Short-Circuit Current | 32A per MPPT |
| MPPT Efficiency | 99.9% |
AC Specifications
| Specification | Value |
|---|---|
| Rated AC Output Power | 3,600W |
| Rated AC Voltage | 230V |
| AC Frequency | 50/60Hz |
| Rated AC Output Current | 15.7A |
| Maximum AC Input Power | 6,600W |
| Continuous AC Passthrough | 52.2A |
| Power Factor | Adjustable from 0.8 leading to 0.8 lagging |
| THDi | <3% |
| Maximum Efficiency | 97.3% |
Physical and Installation Specifications
| Specification | Value |
|---|---|
| Protection Rating | IP66 |
| Cooling | Smart cooling system |
| Topology | Transformerless |
| Display | LCD display with RGB indicators |
| Communications | RS485, Wi-Fi and CAN |
| Noise Emission | <40dB |
| Operating Temperature | -25°C to 60°C |
| Relative Humidity | 0-100% |
| Maximum Operating Altitude | 2,000m |
| Dimensions | 440 × 528 × 220mm |
| Weight | 25kg |
| Parallel Operation | Up to 10 units |
| Warranty | 10 years |
Flexible System Integration
Dedicated generator, AC coupling and smart load ports provide additional options when building or expanding a solar battery system. This allows the GEN2-LB-EU 3.6K to form part of more advanced installations involving existing generation, controlled loads or supplementary power sources.
Up to 10 units can operate in parallel, providing a scalable route for installations that may require greater power capacity as energy requirements increase.
Protection and Compliance
- PV reverse polarity protection
- Over-current protection
- Over-voltage protection
- Anti-islanding protection
- AC short-circuit protection
- Leakage current protection
- Ground fault monitoring
- Grid monitoring
- Integrated DC switch
- Type III AC and DC surge protection
- Certified to G98, G99, EN/IEC 62109-1/2, IEC 61683, EN 61000, IEC 62116, IEC 61727 and related standards
Typical Applications
- Residential solar PV and battery storage systems
- Fogstar 48V and 51.2V battery installations
- On-grid solar battery systems
- Off-grid solar power systems
- Time-of-use electricity tariff optimisation
- Solar self-consumption and load shifting
- Backup power systems
- Home energy independence
- Expandable solar and battery storage installations
Why Choose This Product?
The GEN2-LB-EU 3.6K combines a generous 7kW PV input capacity, dual MPPT tracking and up to 80A battery charging within a compact 3.6kW single-phase hybrid inverter. Its dedicated connection ports, Fogstar battery integration and support for up to 10 parallel units make it suitable for straightforward domestic solar installations as well as more advanced energy storage systems.
With an IP66 enclosure, comprehensive electrical protection and a 10-year warranty, it provides a robust foundation for a long-term residential solar and battery storage system.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
