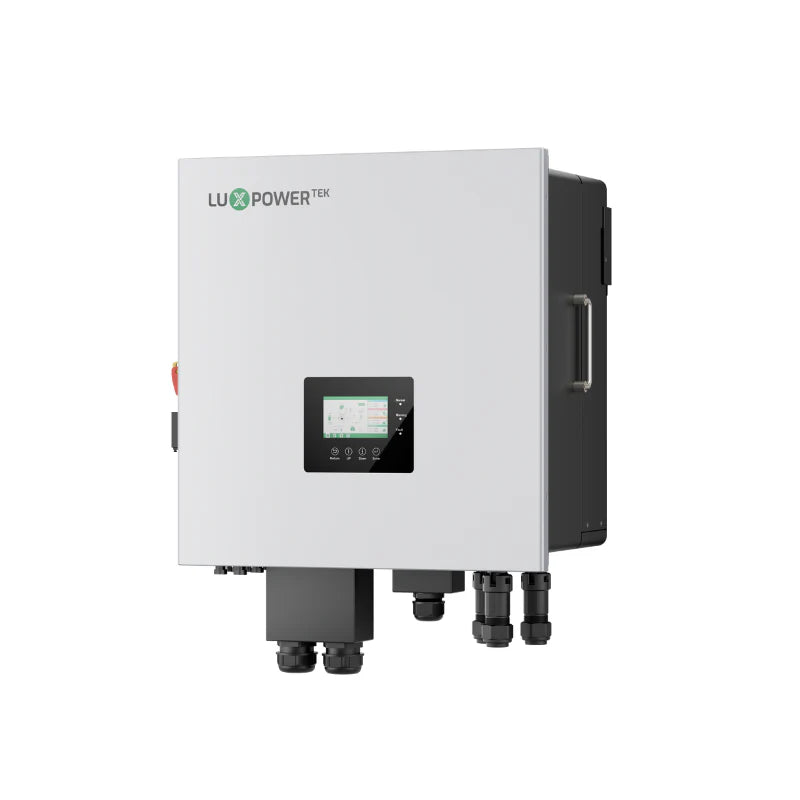

LuxpowerTek GEN-LB-EU 8K (Single Phase Hybrid Inverter)

The LuxPower GEN-LB-EU 8K is a high-power 8kW single-phase hybrid inverter for residential and light commercial solar PV and battery storage systems, combining up to 12kW of solar input, 167A battery charge and discharge capability, dedicated generator integration and on-grid or off-grid operation in one platform. With intelligent tariff optimisation, weather-based charging control and support for parallel expansion, it is well suited to larger energy storage systems where strong power handling and system flexibility are required.

Key Features

• 8kW rated single-phase AC output
• Up to 12,000W maximum solar PV input
• Two independent MPPT trackers with 2:2 string configuration
• 48V nominal battery system with 40-60V operating range
• Up to 167A maximum battery charge and discharge current
• 8,000W maximum battery charge and discharge power
• Dedicated generator port with automatic control
• Suitable for on-grid and off-grid operation
• Time-of-use tariff optimisation
• Weather-based energy optimisation support
• Supports up to 10 units operating in parallel
• 60A continuous AC passthrough
• IP66-rated enclosure
• Touch colour screen display
• RS485, Wi-Fi and CAN communications
• Integrated DC switch
• 10-year warranty

High-Power Hybrid Solar and Battery Storage

The GEN-LB-EU 8K combines solar generation, low-voltage battery storage, grid connectivity and generator support within a single hybrid inverter. Its 48V battery architecture and 167A charge and discharge capability make it particularly suitable for larger residential battery systems and light commercial installations where higher energy throughput is required.

With up to 8,000W of battery charge and discharge power, the inverter can make effective use of strong solar generation during the day and provide substantial stored energy output when demand increases. High current capability also supports rapid charging during favourable solar conditions or lower-cost grid tariff periods.

12kW Solar PV Input with Dual MPPTs

Up to 12,000W of connected solar PV capacity gives the GEN-LB-EU 8K strong solar harvesting capability relative to its 8kW AC output. Two independent MPPT trackers use a 2:2 configuration, giving installers additional flexibility when working with larger arrays or multiple solar orientations.

The 120-550V MPPT operating range, 600V maximum PV input voltage and 25A maximum current per MPPT allow compatibility with a wide range of modern high-power solar modules and string arrangements. MPPT efficiency of up to 99.9% helps maximise available solar generation throughout changing conditions.

Battery Specifications

Solar PV Specifications

AC Specifications

Physical and Installation Specifications

Generator Integration and Energy Management

A dedicated generator port with automatic control makes the GEN-LB-EU 8K particularly useful for installations where backup generation forms part of the overall energy strategy. The inverter can combine solar PV, battery storage, grid power and generator input within a more flexible hybrid energy system.

Time-of-use and weather-based optimisation can help determine when batteries should be charged or discharged, supporting lower grid import costs and improved use of available solar generation. This is particularly useful for UK homes and businesses using variable or off-peak electricity tariffs.

On-Grid, Off-Grid and Scalable Operation

The inverter supports both grid-connected and off-grid operation, allowing it to be used in systems that require normal grid interaction alongside reliable battery-backed power. A 60A continuous AC passthrough rating also supports substantial connected loads within appropriately designed installations.

Up to 10 inverters can operate in parallel, providing a scalable route for larger residential and light commercial solar battery storage systems where greater power capacity may be required over time.

Protection and Compliance

• PV reverse polarity protection
• Over-current protection
• Over-voltage protection
• Anti-islanding protection
• AC short-circuit protection
• Leakage current protection
• Ground fault monitoring
• Grid monitoring
• Integrated DC switch
• Type III AC and DC surge protection
• Certified to G99, G100, EN/IEC 62109-1/2, IEC 61683, EN 61000, EN 62920, IEC 62116, IEC 61727 and related standards

Typical Applications

• Large residential solar PV and battery storage systems
• Light commercial solar battery installations
• 48V low-voltage battery storage systems
• On-grid hybrid solar systems
• Off-grid solar power systems
• Solar and generator hybrid installations
• Time-of-use tariff optimisation
• High solar self-consumption systems
• Backup power systems
• Properties with multiple roof orientations
• Expandable renewable energy systems

Why Choose This Product?

The GEN-LB-EU 8K provides a substantial step up in power for larger residential and light commercial energy systems. Its combination of 8kW AC output, 12kW solar PV input, 167A battery throughput and dedicated generator integration allows solar, battery, grid and backup generation to be managed within a single hybrid platform.

Dual MPPT tracking, 60A AC passthrough, IP66 protection, intelligent energy optimisation and support for up to 10 parallel units provide the flexibility required for higher-demand installations. A 10-year warranty adds long-term confidence for customers investing in a substantial solar and battery storage system.
