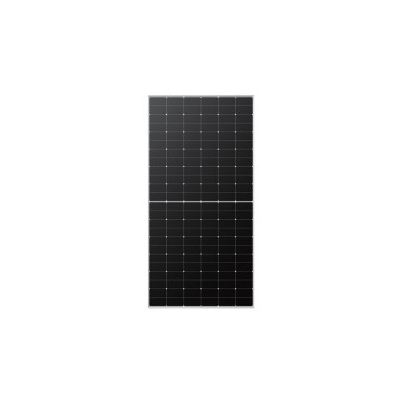

LONGi Solar 575W Hi-MoX6 HPBC Mono Solar Module - Silver Frame/White Backsheet
LONGi Solar 575W Hi-MoX6 HPBC Mono Solar Module - Silver Frame/White Backsheet
Couldn't load pickup availability
SKU:LR5-72HTH-575M
The LONGi Solar 575W Hi-MoX6 HPBC Mono Solar Module - Silver Frame/White Backsheet is a high-output monocrystalline solar panel developed for commercial, industrial and larger off-grid solar installations. Part of LONGi's Hi-MO X6 Explorer range, the LR5-72HTH-575M combines 575W output with 22.3% module efficiency and advanced HPBC back-contact cell technology.
Its 144-cell format provides excellent power density for larger solar arrays, while the silver frame and white backsheet offer a practical finish for commercial rooftops and ground-mounted PV systems.
Key Features
- High 575W rated solar output
- 22.3% module efficiency
- Advanced HPBC back-contact cell technology
- 144-cell (6 x 24) configuration
- Busbar-free front cell design
- Strong low-light performance
- -0.29%/°C Pmax temperature coefficient
- Silver frame with white backsheet
- 15-year product warranty
- 25-year power output warranty
Technical Specifications
| Manufacturer | LONGi Solar |
| Model | LR5-72HTH-575M |
| Product Range | Hi-MO X6 Explorer |
| Rated Power | 575W |
| Module Efficiency | 22.3% |
| Cell Technology | Monocrystalline HPBC |
| Cell Layout | 144 cells (6 x 24) |
| Open Circuit Voltage (Voc) | 52.06V |
| Short Circuit Current (Isc) | 14.14A |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Frame | Silver |
| Backsheet | White |
| Dimensions | 2278 x 1134 x 35mm |
| Weight | 27.5kg |
| Product Warranty | 15 years |
| Power Warranty | 25 years |
High-Efficiency HPBC Technology
LONGi's Hybrid Passivated Back Contact (HPBC) technology uses a busbar-free front design to increase the cell area available for light absorption. This helps improve energy conversion while creating a clean module appearance. Full back welding technology also improves resistance to micro-cracking for greater long-term reliability.
The -0.29%/°C Pmax temperature coefficient supports strong performance as module temperatures increase, while good low-light performance helps maximise solar generation throughout the day.
Typical Applications
- Commercial and industrial rooftop solar
- Large off-grid solar systems
- Ground-mounted solar arrays
- Agricultural and farm solar installations
- Commercial solar and battery storage systems
Why Choose This Product?
The LONGi Hi-MO X6 575W provides high output and 22.3% efficiency in a format well suited to larger solar PV projects. Advanced HPBC technology, strong temperature performance and long-term degradation of just 0.4% annually from years 2-25 make it a dependable choice for commercial and off-grid solar installations.
