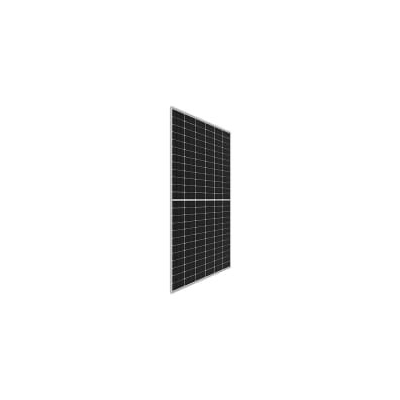

LONGi Solar 540W Hi-MoX10 HPBC + N-type Mono Solar Module
LONGi Solar 540W Hi-MoX10 HPBC + N-type Mono Solar Module
Couldn't load pickup availability
SKU:LR7-60HVH-540M
The LONGi Solar 540W Hi-MoX10 HPBC + N-type Mono Solar Module (LR7-60HVH-540M) is a high-efficiency solar panel for residential, commercial and off-grid solar installations. Delivering 540W output with approximately 23.9% module efficiency, it combines LONGi's N-type TaiRay wafer technology with advanced HPBC back-contact cells to maximise solar generation from available roof or mounting space.
Its high power density makes the Hi-MO X10 particularly useful for larger rooftop arrays where reducing the overall number of modules while achieving the required system capacity can simplify installation and mounting requirements.
Key Features
- High 540W rated solar output
- Approximately 23.9% module efficiency
- N-type TaiRay wafer technology
- Advanced HPBC back-contact cell technology
- 120-cell (6 x 20) layout
- 1500V DC maximum system voltage
- Robust 3.2mm coated tempered glass
- 5400Pa front and 2400Pa rear static load ratings
- 15-year product warranty
- 30-year linear power output warranty
Technical Specifications
| Manufacturer | LONGi Solar |
| Model | LR7-60HVH-540M |
| Product Range | Hi-MO X10 |
| Rated Power | 540W |
| Module Efficiency | Approx. 23.9% |
| Cell Technology | N-type HPBC |
| Cell Layout | 120 cells (6 x 20) |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 25A |
| Glass | 3.2mm coated tempered glass |
| Frame | Anodised aluminium alloy |
| Dimensions | 1990 x 1134 x 30mm |
| Weight | 25.3kg |
| Front / Rear Static Load | 5400Pa / 2400Pa |
| Product Warranty | 15 years |
| Linear Power Warranty | 30 years |
High-Efficiency N-Type HPBC Technology
LONGi's N-type HPBC back-contact technology helps maximise the active cell area available to capture sunlight, contributing to approximately 23.9% module efficiency. The high 540W output makes this panel a strong choice where maximum generation is required from limited roof space.
For long-term outdoor reliability, the module uses 3.2mm coated tempered glass and an anodised aluminium frame. It is rated to withstand static loads of up to 5400Pa on the front and 2400Pa on the rear, with hail testing using 25mm hailstones at 23m/s.
Typical Applications
- Residential rooftop solar PV systems
- Commercial and industrial rooftop solar
- Home solar and battery storage systems
- Large off-grid solar systems
- Ground-mounted solar arrays
- Renewable energy projects
Why Choose This Product?
The LONGi Hi-MO X10 540W combines high output, approximately 23.9% efficiency and advanced N-type HPBC technology in a practical rooftop format. It is a strong option for high-density solar arrays where maximising energy generation per square metre is a priority, backed by a 15-year product warranty and 30-year linear power output warranty.
