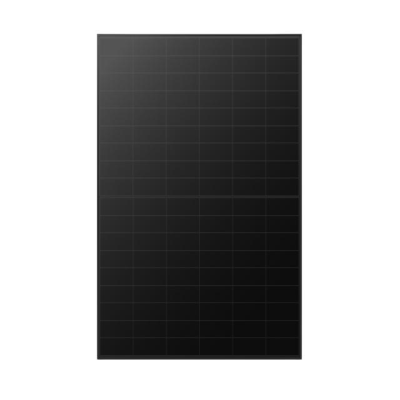

LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module – Full Black
LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module – Full Black
Couldn't load pickup availability
SKU:LR7-54HVB-485M
The LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module – Full Black is a premium high-efficiency solar panel for residential, commercial and off-grid solar installations. Part of LONGi's Hi-MO X10 Artist LR7-54HVB range, it combines N-type TaiRay wafer technology, HPBC2.0 back-contact cells and a 0BB structure to deliver 485W output with an impressive 23.8% module efficiency.
The sleek full-black finish makes it particularly suitable for residential rooftops and other installations where appearance matters, while its high power density helps maximise solar generation from limited roof space.
Key Features
- 485W rated solar output
- High 23.8% module efficiency
- N-type TaiRay wafer technology
- Advanced HPBC2.0 back-contact cell technology
- 0BB cell structure
- Premium full-black appearance
- Black anodised aluminium frame
- IP68-rated junction box
- 1500V DC maximum system voltage
- 25-year product warranty
- 30-year linear power output warranty
Technical Specifications
| Manufacturer | LONGi Solar |
| Product Range | Hi-MO X10 Artist / LR7-54HVB |
| Rated Power | 485W |
| Module Efficiency | 23.8% |
| Cell Technology | N-type HPBC2.0 |
| Maximum Power Voltage (Vmp) | 33.40V |
| Maximum Power Current (Imp) | 14.53A |
| Open Circuit Voltage (Voc) | 40.40V |
| Short Circuit Current (Isc) | 15.23A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 25A |
| Glass | 3.2mm coated tempered glass |
| Frame | Black anodised aluminium alloy |
| Junction Box | IP68 |
| Dimensions | 1800 x 1134 x 30mm |
| Weight | 21.6kg |
| Front / Rear Static Load | 5400Pa / 2400Pa |
| Product Warranty | 25 years |
| Linear Power Warranty | 30 years |
High-Efficiency HPBC2.0 Technology
LONGi's HPBC2.0 back-contact technology moves electrical contacts away from the front-facing cell surface, helping maximise the area available to capture sunlight while creating a clean, uninterrupted appearance. Combined with N-type cells and 0BB architecture, the module achieves 23.8% efficiency from a compact 1800 x 1134mm footprint.
The panel uses 3.2mm coated tempered glass, a black anodised aluminium frame and an IP68-rated junction box, with static load ratings of 5400Pa front and 2400Pa rear for reliable long-term outdoor installation.
Typical Applications
- Residential rooftop solar PV systems
- Home solar and battery storage systems
- Commercial rooftop solar installations
- Off-grid solar power systems
- Ground-mounted solar arrays
- DIY solar systems
Why Choose This Product?
The LONGi Hi-MO X10 Artist 485W combines excellent 23.8% efficiency with a premium full-black finish, making it particularly attractive for modern residential solar installations. Its high power density helps maximise generation from available roof space, backed by a 25-year product warranty and 30-year linear power output warranty.
