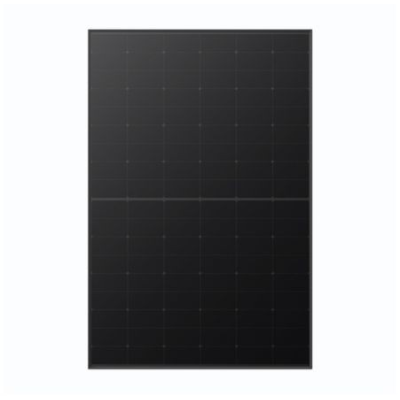

LONGi Solar 485W Hi-MoX10 Dual Glass HPBC + N-type Mono Solar Module – Black Frame/White Backsheet
LONGi Solar 485W Hi-MoX10 Dual Glass HPBC + N-type Mono Solar Module – Black Frame/White Backsheet
Couldn't load pickup availability
SKU:LR7-54HVD-485M
The LONGi Solar 485W Hi-MoX10 Dual Glass HPBC + N-type Mono Solar Module – Black Frame/White Backsheet is a high-efficiency solar panel for residential, commercial and off-grid solar installations. Part of LONGi's Hi-MO X10 LR7-54HVD range, it combines N-type TaiRay wafer technology, HPBC2.0 back-contact cells and a 0BB structure to deliver 485W output with an impressive 23.8% module efficiency.
Dual-glass construction provides additional durability and long-term protection, while the black anodised frame and clean rear design make it particularly suitable for visible residential and commercial rooftop installations.
Key Features
- 485W rated solar output
- High 23.8% module efficiency
- N-type TaiRay wafer technology
- Advanced HPBC2.0 back-contact cell architecture
- 0BB cell structure
- Dual-glass construction for improved durability
- Black anodised aluminium frame
- 70±5% bifaciality
- IP68-rated junction box
- 15-year product warranty
- 30-year linear power output warranty
Technical Specifications
| Manufacturer | LONGi Solar |
| Product Range | Hi-MO X10 / LR7-54HVD |
| Rated Power | 485W |
| Module Efficiency | 23.8% |
| Cell Technology | N-type HPBC2.0 |
| Maximum Power Voltage (Vmp) | 33.62V |
| Maximum Power Current (Imp) | 14.43A |
| Open Circuit Voltage (Voc) | 40.64V |
| Short Circuit Current (Isc) | 15.08A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Bifaciality | 70±5% |
| Junction Box | IP68, 3 diodes |
| Dimensions | 1800 x 1134 x 30mm |
| Weight | 23.5kg |
| Front / Rear Static Load | 5400Pa / 2400Pa |
| Product Warranty | 15 years |
| Linear Power Warranty | 30 years |
High-Efficiency HPBC2.0 Technology
LONGi's HPBC2.0 back-contact technology removes conventional front-side electrical contacts, helping maximise the cell area available for sunlight while creating a cleaner appearance. Combined with N-type TaiRay wafers and 0BB architecture, the module achieves 23.8% efficiency, making it a strong option where roof or mounting space is limited.
The dual-glass construction uses 2.0mm coated tempered glass and 1.6mm semi-tempered glass for increased protection and long-term reliability. It is rated for a maximum system voltage of 1500V DC and features an IP68 junction box for dependable outdoor operation.
Typical Applications
- Residential rooftop solar PV systems
- Home solar and battery storage systems
- Commercial rooftop solar installations
- Off-grid solar power systems
- Ground-mounted solar arrays
- DIY solar systems
Why Choose This Product?
The LONGi Hi-MO X10 485W combines very high 23.8% efficiency with N-type HPBC2.0 technology and durable dual-glass construction. Its high power density makes it particularly useful for maximising solar generation from limited roof space, backed by a 15-year product warranty and 30-year linear power output warranty.
