GivEnergy 100kW G99 Panel
GivEnergy 100kW G99 Panel
Couldn't load pickup availability
SKU:GIV-G99-100
100kW G99 Protection Relay Panel
The 100kW G99 Protection Relay Panel is a vital component for ensuring compliance with G99 grid connection standards in solar PV and battery storage systems. Specifically designed for use with GivEnergy and PCS systems, this G99 relay panel provides essential protection and isolation, meeting all G99 engineering recommendations for grid-tied generation over 16A per phase.
Housed in a robust mild steel enclosure, the relay panel includes high-quality ABB components for maximum reliability and safety. It incorporates automatic disconnection features and clear system indication, ensuring peace of mind and regulatory compliance for your renewable energy installation.
Included Components
| Component | Details |
|---|---|
| Control Panel | 100kW G99 Control Panel |
| Enclosure | Mild Steel |
| Isolator | 160A 4-pole ABB isolator with lockable handle |
| Contactor | 160A 4-pole ABB contactor with 230V coil and NO/NC/AUX contacts |

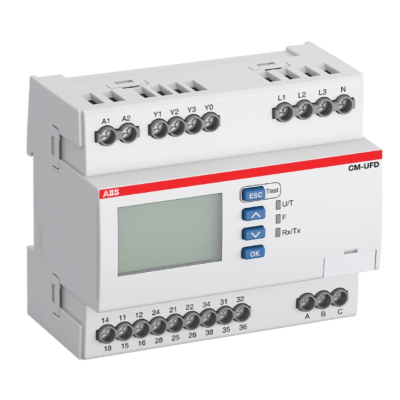

| Protection Relay | ABB CM-UFD G99 Relay |
| MCB | 160A ABB 3-pole MCB |
| System Indicators | LED status indication lights |
| Ventilation | Door-mounted vent |
| Earthing | Earth Block included |
| Emergency Stop | E-Stop button installed |
| Dimensions | 700h x 500w x 250d mm (approx) |
Download the datasheet for the 100kW G99 Protection Relay Panel here.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
