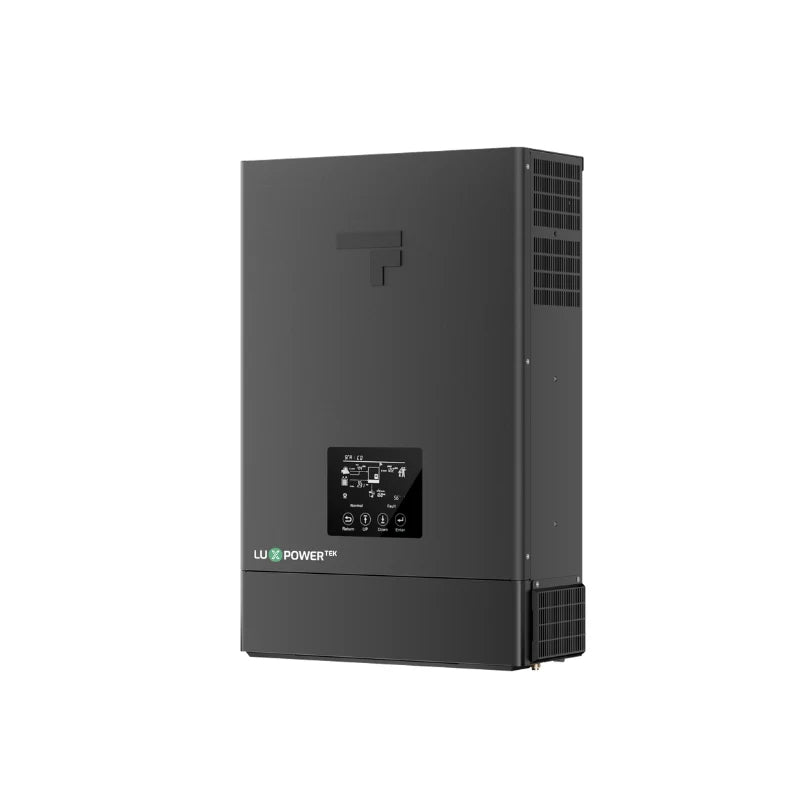

Fogstar x LuxpowerTek SNA 6K Off-Grid Inverter
Fogstar x LuxpowerTek SNA 6K Off-Grid Inverter
Couldn't load pickup availability
SKU:INV-LUX-6KW-SPH-BLK
The Fogstar x LuxpowerTek SNA 6K is a 6kW single-phase off-grid inverter for 48V and 51.2V battery systems, combining dual MPPT solar inputs, high battery throughput and flexible grid or generator support in a compact wall-mounted unit. Built on proven LuxpowerTek technology and configured for integration with Fogstar battery systems, it is well suited to off-grid solar systems, backup power installations and hybrid energy setups where reliable power conversion and scalable battery storage are required.
Key Features
- 6kW single-phase 230V AC output
- Up to 9,600W maximum solar PV input
- Dual independent MPPT inputs
- 48V / 51.2V battery compatibility
- 38.4-60V battery operating range
- Up to 140A maximum battery charge and discharge current
- 6kW continuous inverter output
- 12,000W surge capability for 5 seconds
- Fast grid to off-grid transfer in less than 7ms
- Pure sine wave output for sensitive electrical loads
- Generator, AC coupling and smart load support
- Supports up to 18 units operating in parallel
- Force wake-up from PV and grid supported
- RS485, Wi-Fi and CAN communications
- 3-year warranty
Off-Grid Solar and Battery Power
The SNA 6K is built for systems where dependable battery-backed AC power is a priority. Its 48V / 51.2V battery architecture allows it to integrate with Fogstar battery storage while supporting high charge and discharge currents of up to 140A.
With 6kW of continuous output and up to 12kW surge power for 5 seconds, the inverter can handle demanding household and off-grid loads while still providing the short-duration power needed by equipment with higher start-up requirements.
High Solar Input with Dual MPPTs
Up to 9,600W of solar PV input allows the inverter to support larger solar arrays, while dual MPPT trackers provide improved flexibility when panels are installed across different roof orientations, array sections or ground-mounted strings.
Maximum MPPT efficiency of 99.9% helps the system capture available solar energy efficiently across changing conditions, making it a strong choice for off-grid solar systems where maximising daily energy harvest is especially important.
Battery and Power Specifications
| Specification | Value |
|---|---|
| Battery System Voltage | 48V / 51.2V |
| Battery Operating Range | 38.4-60V |
| Maximum Charge/Discharge Current | 140A |
| Continuous Output Power | 6,000W |
| Surge Power | 12,000W for 5 seconds |
| Maximum Charge/Discharge Efficiency | 93.0% |
| Battery Communication | CAN |
| Force Wake-Up | Supported from PV and grid |
Solar PV Specifications
| Specification | Value |
|---|---|
| Maximum PV Input Power | 9,600W |
| MPPT Inputs | Dual MPPT |
| Maximum MPPT Efficiency | 99.9% |
AC and Efficiency Specifications
| Specification | Value |
|---|---|
| Rated AC Output Power | 6,000W |
| Rated AC Voltage | 230V |
| Output Waveform | Pure sine wave |
| Transfer Time | <7ms |
| Maximum Efficiency | 93.0% |
| EU Efficiency | 94.7% |
| Maximum Charge/Discharge Efficiency | 93.0% |
Physical and Installation Specifications
| Specification | Value |
|---|---|
| Protection Rating | IP20 |
| Installation | Wall-mounted |
| Topology | Transformerless |
| Communications | RS485, Wi-Fi and CAN |
| Noise Emission | <50dB |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Relative Humidity | 5-95% |
| Maximum Operating Altitude | 2,000m |
| Dimensions | 330 × 505 × 135mm |
| Weight | 14.5kg |
| Parallel Operation | Up to 18 units |
| Warranty | 3 years |
Generator and Hybrid System Support
The SNA 6K supports generator integration alongside AC coupling and smart load functionality, giving installers greater flexibility when building complete off-grid or hybrid energy systems. This makes it suitable for applications where solar and battery storage may need to work alongside a generator or alternative AC power source.
Fast transfer between grid and off-grid operation helps maintain continuity of supply, while pure sine wave output provides clean AC power for sensitive electronics, appliances and communications equipment.
Scalable Parallel Operation
Up to 18 units can be operated in parallel, providing substantial expansion potential for larger off-grid solar and battery storage systems. This makes the platform suitable not only for residential installations, but also for larger properties, workshops, remote buildings and commercial off-grid applications where greater power capacity may be needed.
Protection Features
- Over-current protection
- Over-voltage protection
- AC short-circuit protection
- Grid monitoring
- Battery reverse polarity protection
- Type III AC surge protection
Typical Applications
- Residential off-grid solar systems
- Fogstar 48V and 51.2V battery storage installations
- Remote homes and buildings
- Backup power systems
- Hybrid solar and generator systems
- Workshops, cabins and agricultural buildings
- Energy independence projects
- High-capacity DIY solar systems
- Expandable off-grid battery storage systems
Why Choose This Product?
The Fogstar x LuxpowerTek SNA 6K combines strong 6kW AC output, up to 9.6kW of solar PV input and 140A battery throughput in a compact off-grid inverter platform. Dual MPPT inputs, generator support and fast transfer switching make it particularly useful for systems where solar, batteries and supplementary power sources need to work together reliably.
Its ability to operate up to 18 units in parallel also makes it highly scalable, giving homeowners and installers a practical route from a single 6kW off-grid inverter to a substantially larger energy system as power requirements increase.
For technical support or additional information, reach out to us at hello@offgridrenewables.co.uk.
