Fogstar Drift 12V 172Ah (H8) DIN Fit
Fogstar Drift 12V 172Ah (H8) DIN Fit
Couldn't load pickup availability
SKU:FG-DR-12V-172AH

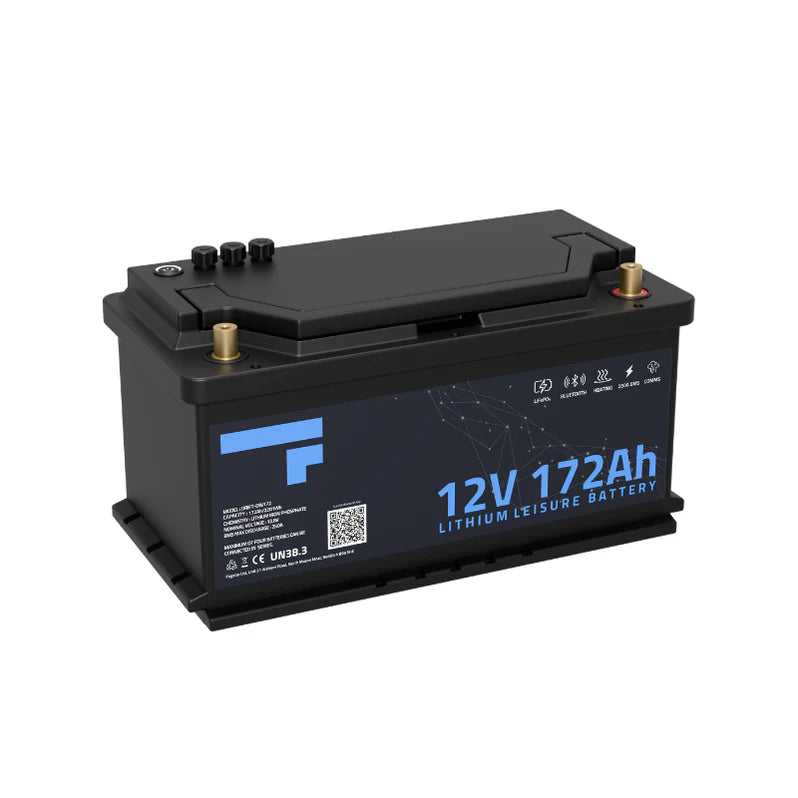

Fogstar Drift 12V 172Ah (H8) DIN Fit LiFePO4 Leisure Battery
The Fogstar Drift 12V 172Ah (H8) DIN Fit LiFePO4 Leisure Battery is a premium high-capacity lithium leisure battery designed for campervans, motorhomes, caravans, boats, off-grid solar systems and inverter applications. Built using advanced LiFePO4 lithium technology, this Fogstar Drift battery delivers exceptional cycle life, reliable power output, integrated smart protection and direct DIN case replacement compatibility for traditional lead-acid leisure batteries.
Manufactured in a standard DIN footprint, the Fogstar Drift 172Ah H8 battery is designed to physically replace many existing AGM or lead-acid leisure batteries without requiring tray modifications, making it an ideal upgrade solution for modern off-grid electrical systems. With integrated CAN-BUS communication, Bluetooth monitoring, active balancing and automatic low-temperature heating, this battery is engineered for demanding real-world applications.
The integrated 250A Smart BMS provides advanced battery management and protection against overcharge, over discharge, overcurrent, short circuit and temperature extremes, ensuring safe and dependable long-term operation. Combined with premium Grade A EVE prismatic cells and active balancing technology, the battery delivers stable voltage performance and extended service life.
Ideal for pairing with Victron Energy systems and other lithium-compatible inverter chargers, the Fogstar Drift 172Ah battery supports high-performance off-grid power systems requiring dependable energy storage and modern lithium functionality.
Key Features:
- 172Ah high-capacity LiFePO4 lithium leisure battery
- Standard DIN H8 case format for direct lead-acid replacement
- Integrated 250A Smart BMS with advanced protection systems
- Built-in active cell balancer for improved stability and longevity
- Victron CAN-BUS compatible for seamless system integration
- Bluetooth monitoring for live battery data and diagnostics
- Integrated automatic low-temperature heating system
- IP67 rated enclosure for excellent environmental protection
- Premium Grade A EVE prismatic lithium cells
- Suitable for campervans, motorhomes, boats and off-grid systems
- Designed and supported in the UK with 10-year warranty
Download the datasheet for the Fogstar Drift 12V 172Ah (H8) DIN Fit LiFePO4 Leisure Battery here: Download Datasheet
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Fogstar Drift 12V 172Ah (H8) DIN Fit LiFePO4 Leisure Battery |
| Battery Chemistry | LiFePO4 Lithium Iron Phosphate |
| Nominal Voltage | 12.8V |
| Capacity | 172Ah |
| Energy Storage | 2,201.6Wh |
| Cycle Life | 3500 Cycles |
| Recommended Charge Voltage | 14.4V |
| Maximum Continuous Discharge | 172A |
| BMS | 250A Smart BMS with Active Balancing |
| Monitoring | Bluetooth, RS485 and CAN Communication |
| Heating Function | Integrated Automatic Low-Temperature Heating (0°C to 10°C) |
| IP Rating | IP67 |
| Cell Type | Grade A EVE Prismatic Cells |
| Configuration | 4S1P |
| Dimensions (L x W x H) | 358.8 x 177.3 x 187.6mm |
| Weight | Approx. 16kg |
| Terminal Type | M8 - 1.25 Pitch - 12mm (Bolts Included) |
| Warranty | 10 Years |
System Configuration Options
- Connect up to 4 batteries in series for 48V battery systems
- Connect up to 16 batteries in parallel to increase storage capacity
- Suitable for Victron Energy systems and lithium-compatible inverter chargers
The Fogstar Drift 12V 172Ah DIN Fit battery is an excellent solution for users seeking a powerful, reliable and compact lithium battery upgrade with advanced communication features, integrated heating and exceptional off-grid performance.
