Fogstar

Fogstar 230Ah Seat Base

Fogstar 230Ah Seat Base

£609.99
£609.99
Sale Sold out
Tax included. Shipping calculated at checkout.

FG-SB-230AH

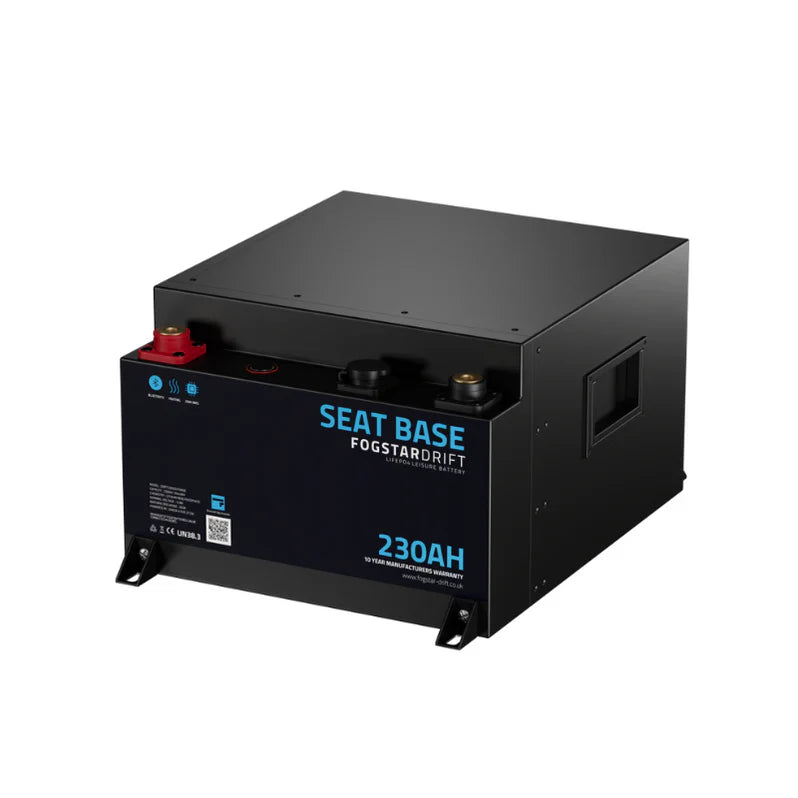

Fogstar Drift Seat Base 12.8V 230Ah Lithium Leisure Battery

If you’re looking for a compact yet powerful way to power your campervan or motorhome, the Fogstar Drift Seat Base 12.8V 230Ah lithium leisure battery is the ideal solution. Purpose-built to fit neatly beneath vehicle seats, this innovative seat base battery offers exceptional performance while maximising valuable interior space.

With ultra-compact dimensions of just 275 x 315 x 187.5 mm, the Drift Seat Base is one of the most space-efficient lithium leisure batteries available on the UK market. Despite its small footprint, it delivers an impressive 2,944Wh of usable energy, making it perfect for off-grid campervan, motorhome, and van conversion applications.

Download the specification sheet for Fogstar Drift Seat Base 12.8V 230Ah Lithium Leisure Battery here.

Key Features & Benefits

  • Designed & Supported in the UK – Engineered by an award-winning UK-based team and backed by UK customer support
  • Ultra-Compact Seat Base Design – Designed specifically to fit under standard vehicle seats
  • High Energy Density – Delivers 2,944Wh of energy in a compact form factor
  • Grade A EVE LiFePO4 Cells – Offers over 4,000 cycles at 80% depth of discharge for 10–15 years of service
  • 10-Year Warranty – Comprehensive long-term peace of mind
  • Advanced 200A JBD BMS – High-discharge Battery Management System for safe inverter use
  • Integrated Low-Temperature Heating – Automatic heating system ensures reliable charging in cold conditions
  • Bluetooth Monitoring – Monitor battery status in real time via the Fogstar Drift app (iOS & Android)
  • Manual On/Off Hibernation Switch – Easily power down the battery without using the app
  • Optional Active Balancer Support – Dedicated input for Fogstar Drift (JK) 2A Active Balancer

Quick Specifications

Specification Value
Energy 2,944 Wh
Nominal Capacity 230 Ah
Nominal Voltage 12.8 V
Recommended Charge Voltage 14.4 V
Maximum Continuous Discharge 200 A
Dimensions (L x W x H) 275 x 315 x 187.5 mm
Weight 25 kg
Battery Management System 200A JBD BMS
Active Balancer JK (optional 2A input)
Terminal Type M8 (1.25 pitch, 12 mm – bolts included)
Recommended Inverter Size Up to 2500 W

Vehicle Compatibility

It is essential to measure the available space under your specific seat, particularly if a swivel base is fitted. The Fogstar Drift Seat Base lithium battery has been successfully installed by customers in a wide range of vehicles, including:

  • VW Transporter T6 / T6.1
  • Ford Transit Custom
  • Mercedes-Benz Vito and Sprinter
  • Fiat Ducato
  • Peugeot Boxer
  • Citroën Relay
