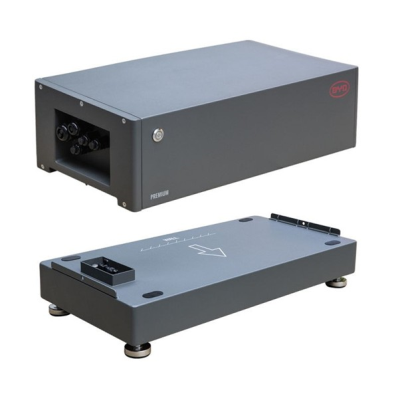

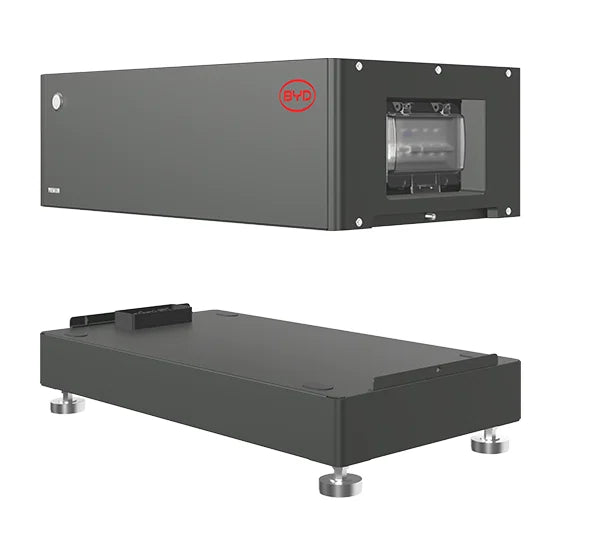

BYD Battery Box Premium HVM/HVS Battery Base and Control Unit 2.0

"High-voltage modular battery storage system designed for residential and light commercial solar, backup and off-grid applications. The BYD Battery-Box Premium HVS & HVM systems use safe, cobalt-free Lithium Iron Phosphate (LFP) chemistry and offer flexible scalability with high efficiency and power output.

System Configurations:

System	Modules per Stack	Usable Energy per Stack	Max Parallel Stacks	Max System Capacity
HVS	2–5 (series)	5.1–12.8 kWh	3	38.4 kWh
HVM	3–8 (series)	8.3–22.1 kWh	3	66.2 kWh

Key Features:

• High-power backup and off-grid capable
• True high-voltage architecture for high efficiency
• Tool-less, patented plug-in design with no internal cabling
• Cobalt-free LFP chemistry for safety and long cycle life
• Expandable at any time with additional modules or stacks
• Compatible with leading single- and three-phase HV inverters
• Certified to VDE 2510-50 and other international standards

"
